TBS Oblivion build

A detailed walk through my recent build of custom TBS Oblivion. Received this frame from Drone Drop box subscription and thought I’d give it a go with the spares I had laying around.

Hello, so the main reason for this build was that I broke my previous frame and this was laying around since I received it in last Drone Drop box.

The only other thing I needed was a 4-in-1 ESC, which after a quick research I decided to go with Holybro Tekko32 35A 4-in-1 BLHeli32 ESC which was supposed to be the best when it comes to noise.

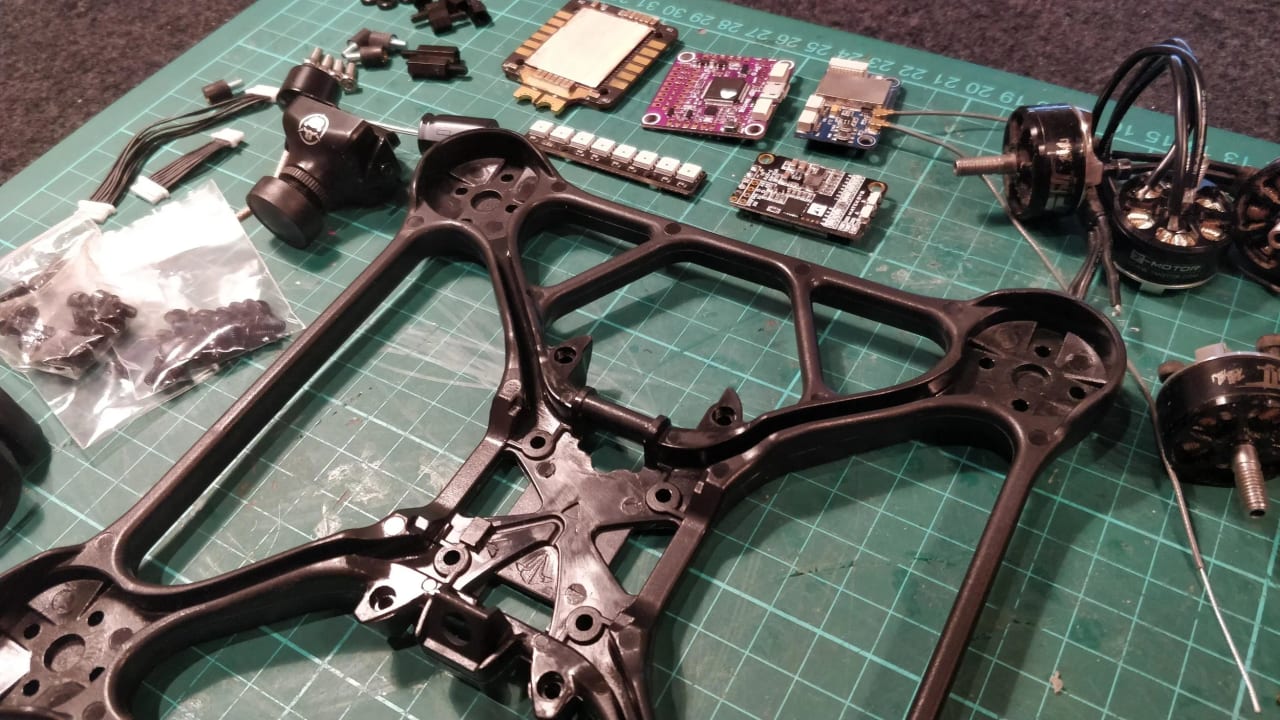

First of all I must say this was the longest builds ever, because of the limited space and that bulky ESC that wouldn’t fit into the frame and under the canopy. So perfect planning was the key here. I also wanted to use SP Racing F4 EVO flight controller that was laying around in my spares box, but after realising that it doesn’t have an OSD and adding next board is not an option (because of the limited space inside the frame) I had to reuse Omnibus F4 Pro V2 board from a previous build.

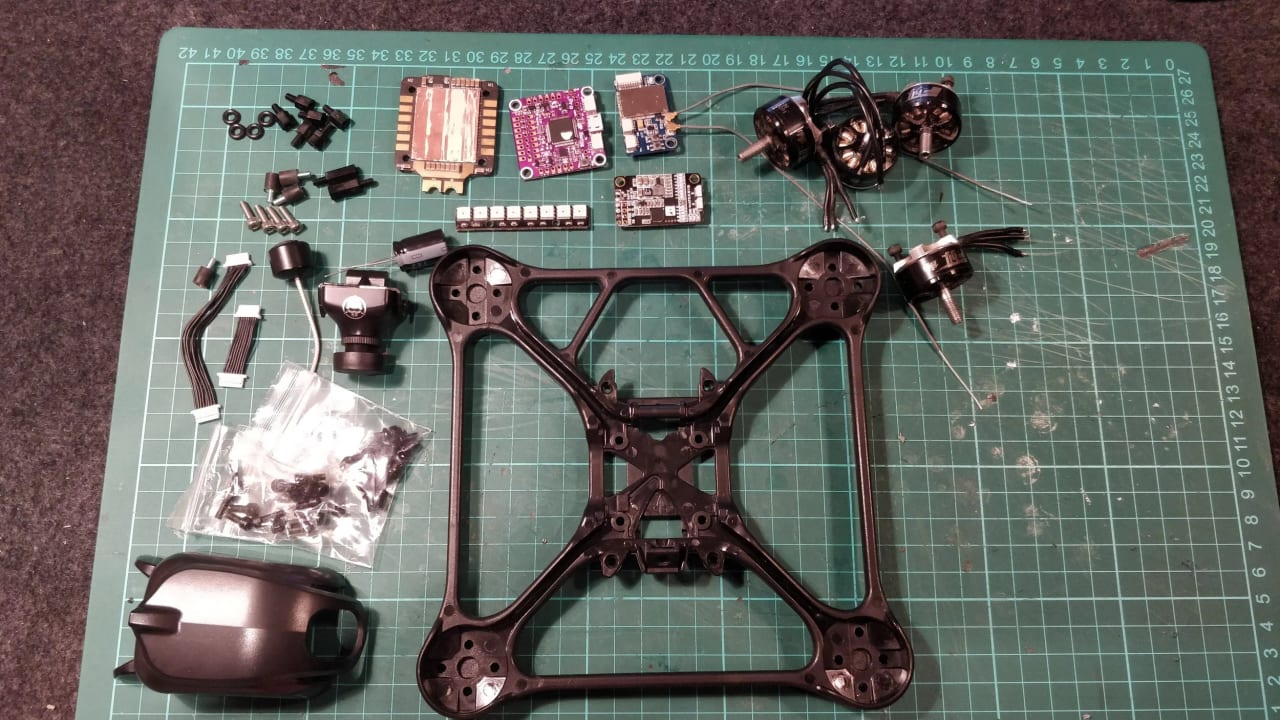

View fullsize IMG_20180611_223105.jpg

View fullsize IMG_20180611_223109.jpg

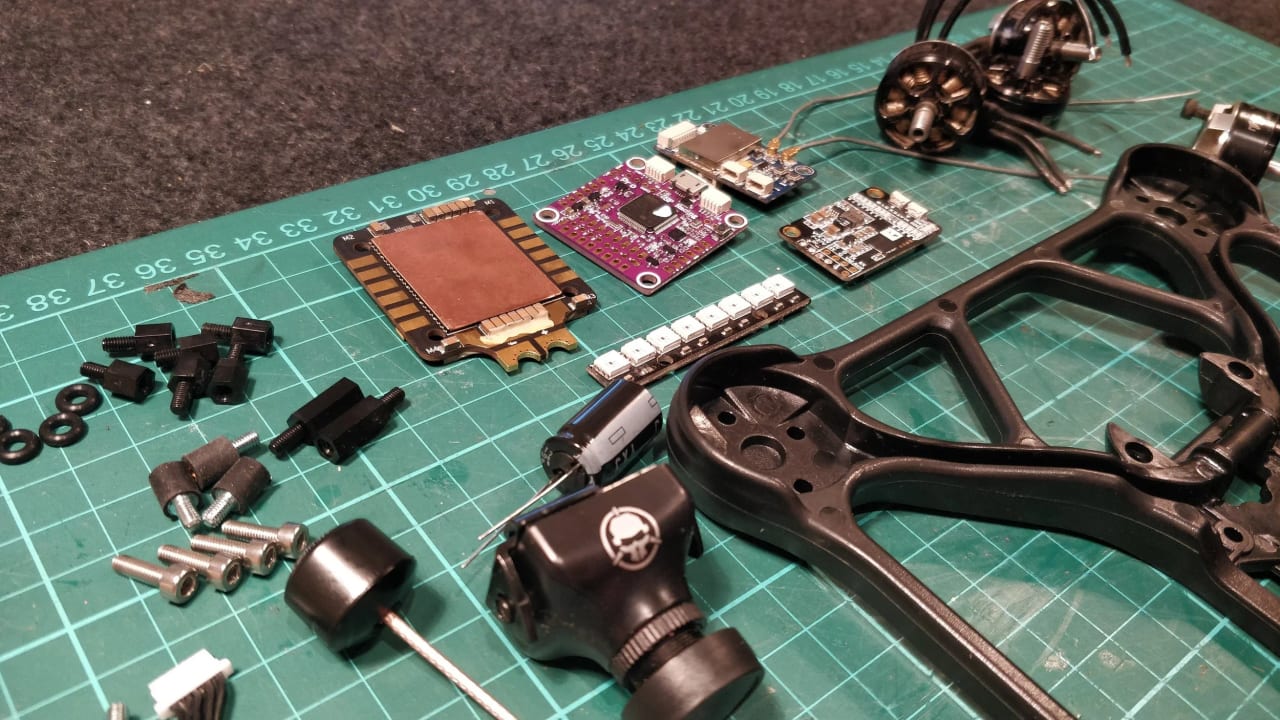

View fullsize IMG_20180611_223112.jpg

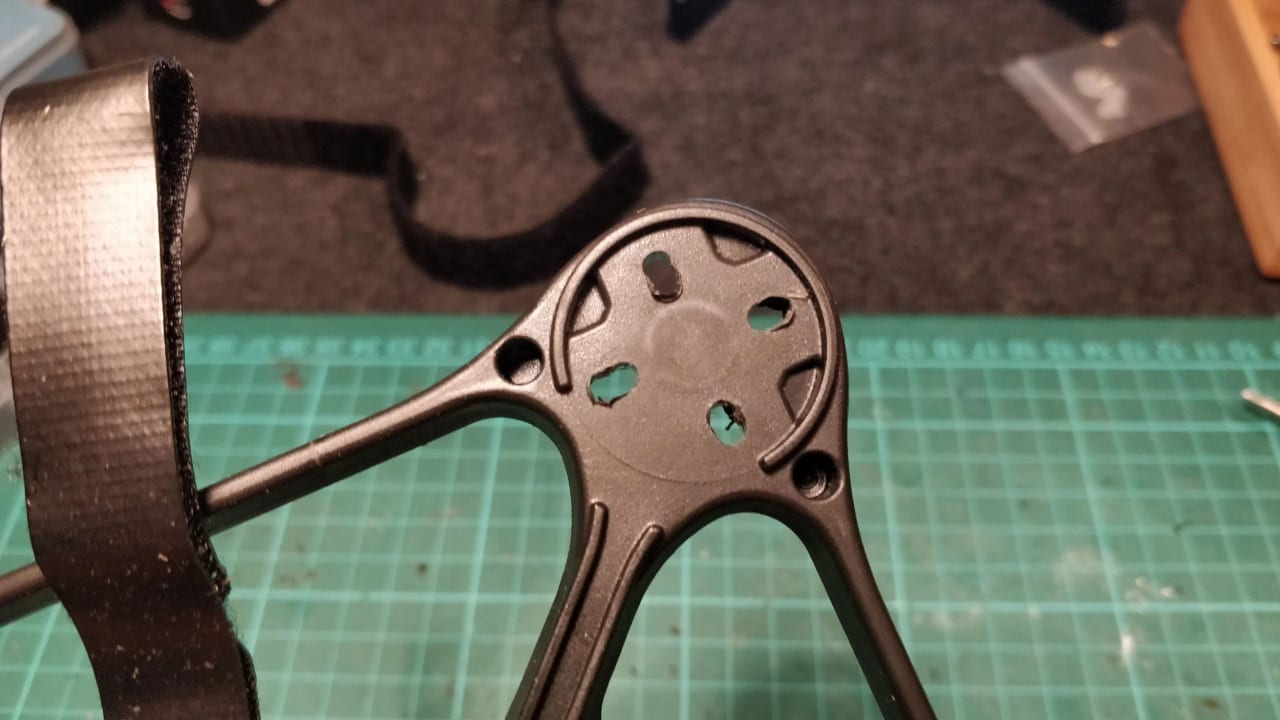

Motor holes

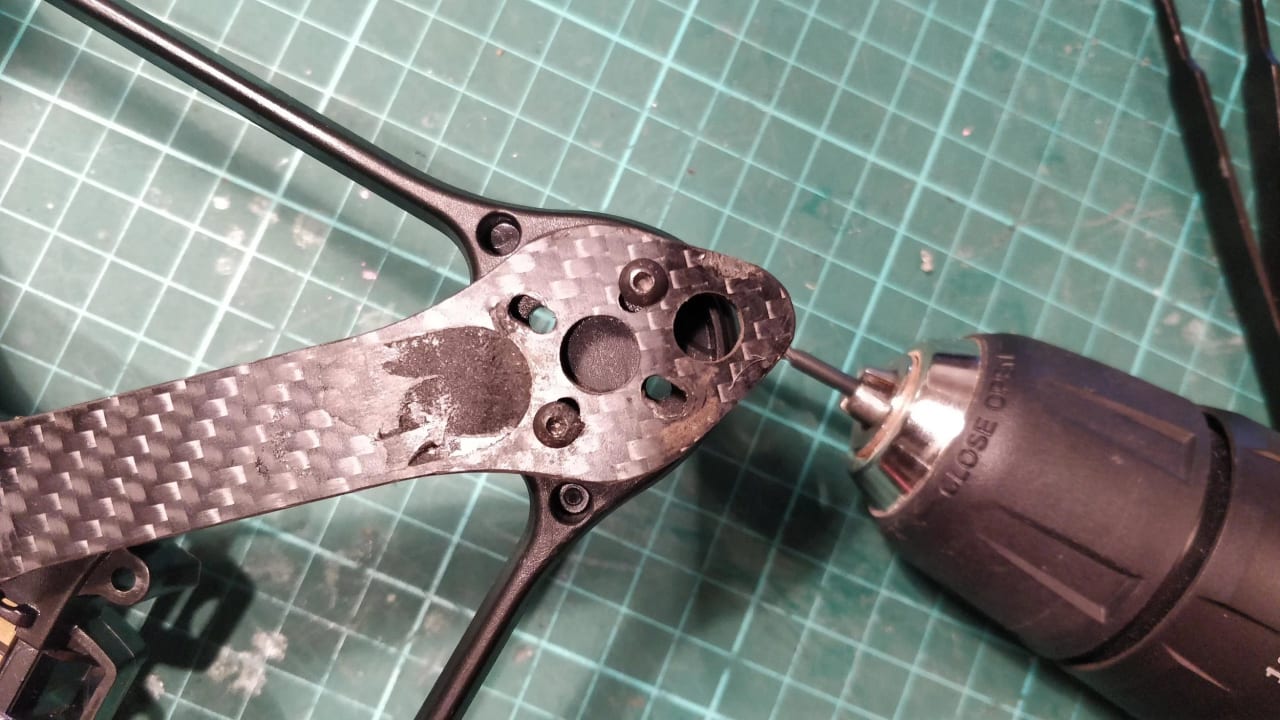

Another problem was with the motor holes not being aligned with the motors, as if someone intentionally designed them the other way around. Not sure who to blame (TBS or T-motor) as on other frames holes were universal so I could fit any motor and never expected this would be an issue here. At the end I used an arm from some broken frame and bolted it to the holes in Oblivion and this gave me a template to drill them correctly.

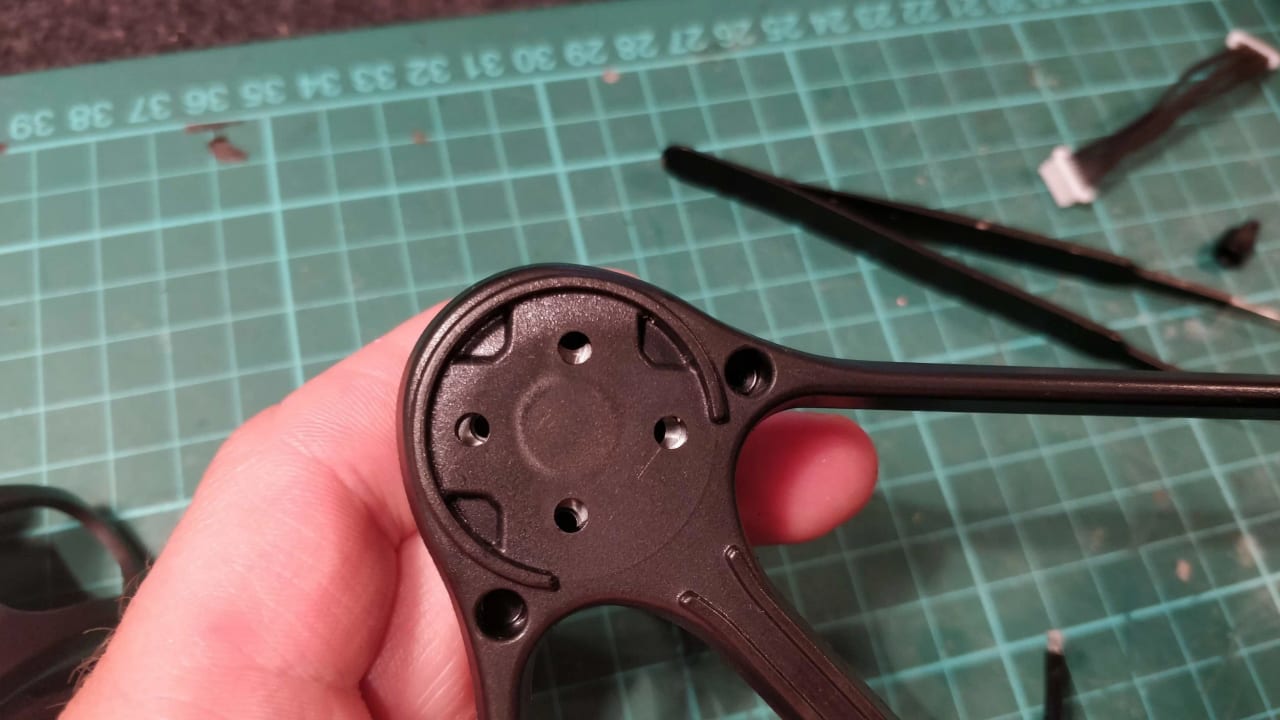

View fullsize IMG_20180611_225824.jpg

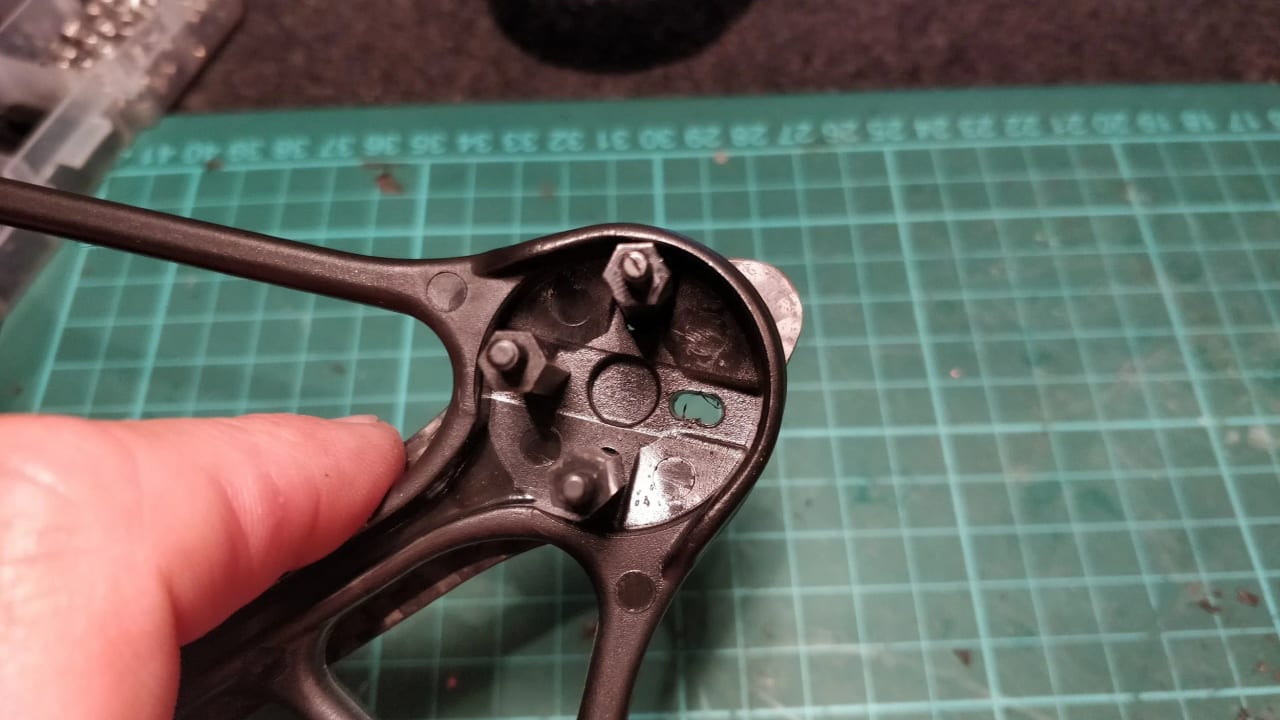

View fullsize IMG_20180611_232034.jpg

View fullsize IMG_20180611_230704.jpg

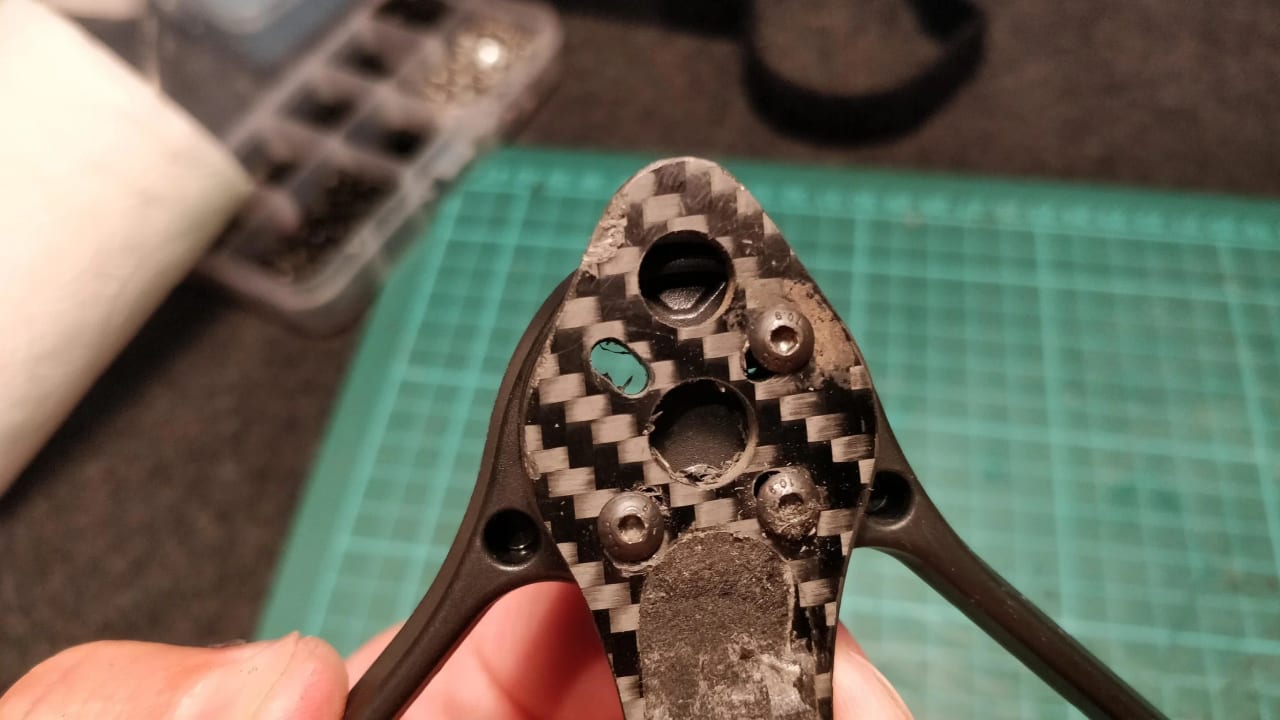

View fullsize IMG_20180611_232039.jpg

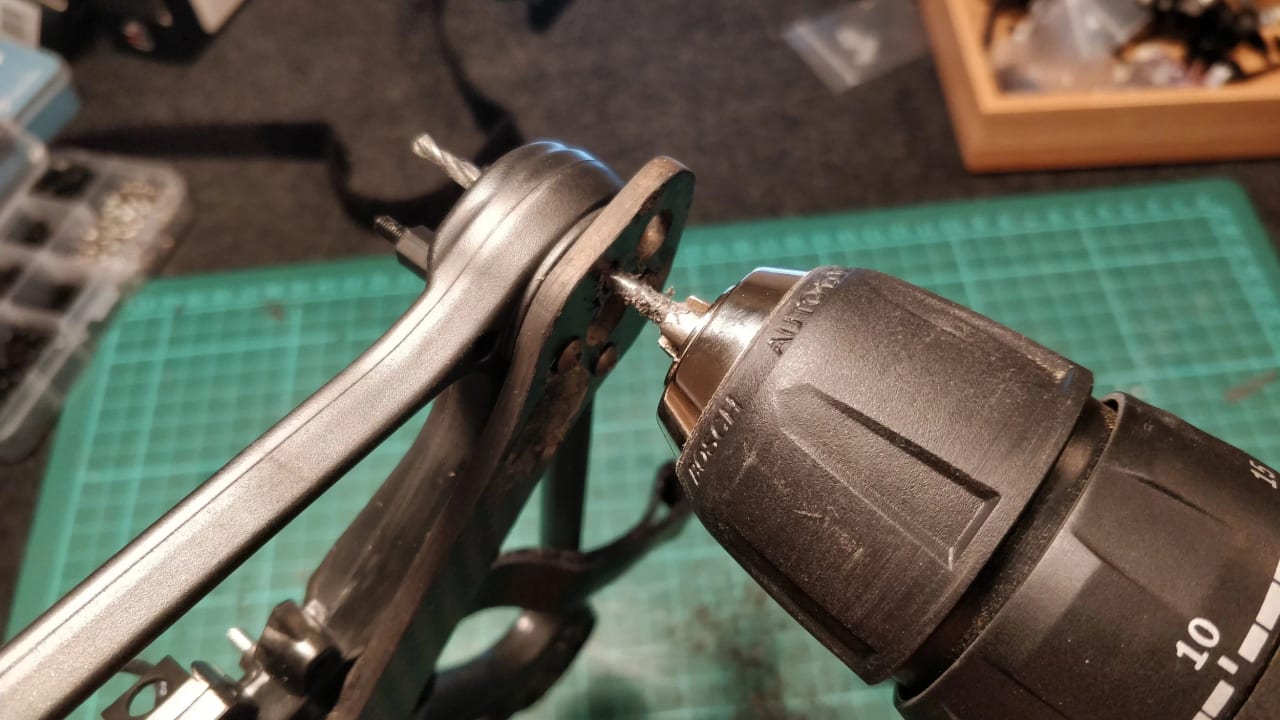

View fullsize IMG_20180611_232614.jpg

View fullsize IMG_20180611_232931.jpg

Planning

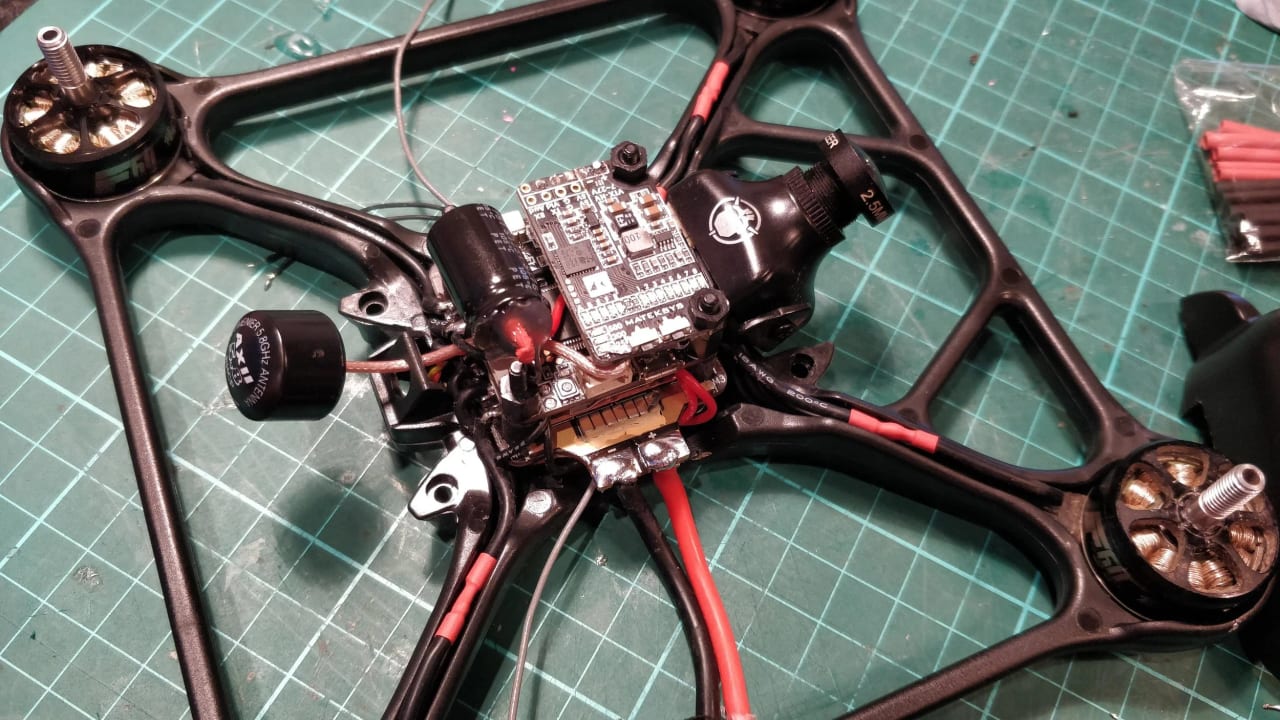

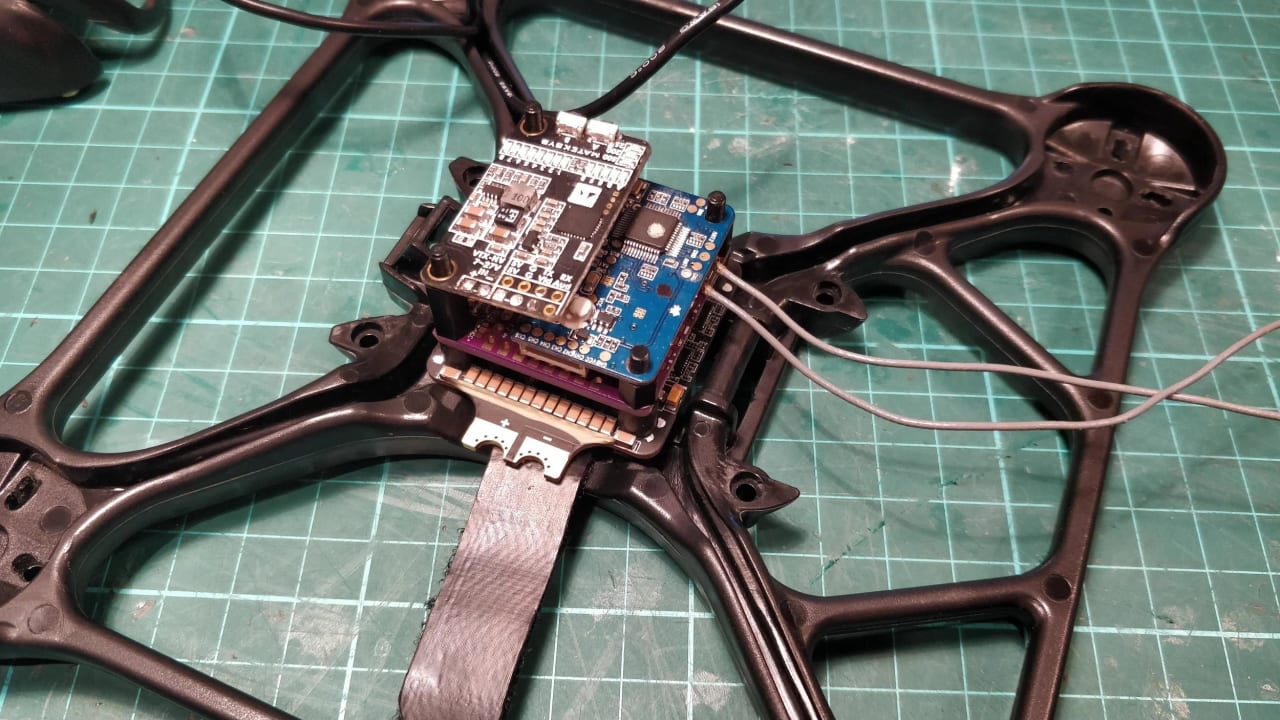

First thought was to stack everything up where ESC would be on the bottom, turned upside down (so I’d have to solder motors from underneath) with mattery connector sticking out of one of the sides, then Flight Controller, next Receiver and bit higher spacers for the VTX.

This looked like it would fit and should be fine, but I didn;t like the idea of soldering motor cables from underneath the frame, which would also leave a lot of space between bottom of the frame and the ESC, as ESC would have to be high enough so that the battery straps are not being pushed by battery pads and the connector on the ESC.

This gave me an idea to actually place Receiver into that space.


So while doing so I also turned ESC upside down, so I have all the motor pads exposed from the top - for easier soldering. This looked like a success so I started soldering everything together.

Because I have moved Receiver to the bottom of the stack it made some space for the capacitor, and also decided to solder AXII antenna directly to the VTX.

This was all nicely fitting under the canopy, which I had to cut a little to acomodate battery pads that were sticking out at the side of the frame, and the ESC connector with it’s cables on the other side.

Unfortunately after plugging it in, there was a lot of noise on the OSD display, and friends suggested to ground VTX and other unused components with additional wires, or use LC filter.

The real build

Back to the drawing board… I happened to have some different PDBs, and this specific Matek one was very thin (Matek Power Hub) so I thought I would stick it under the 4-in-1 ESC and also remove connector from that ESC and solder wires directly to it - to save space, meaning I could get everything about 0.5 centimeter lower.

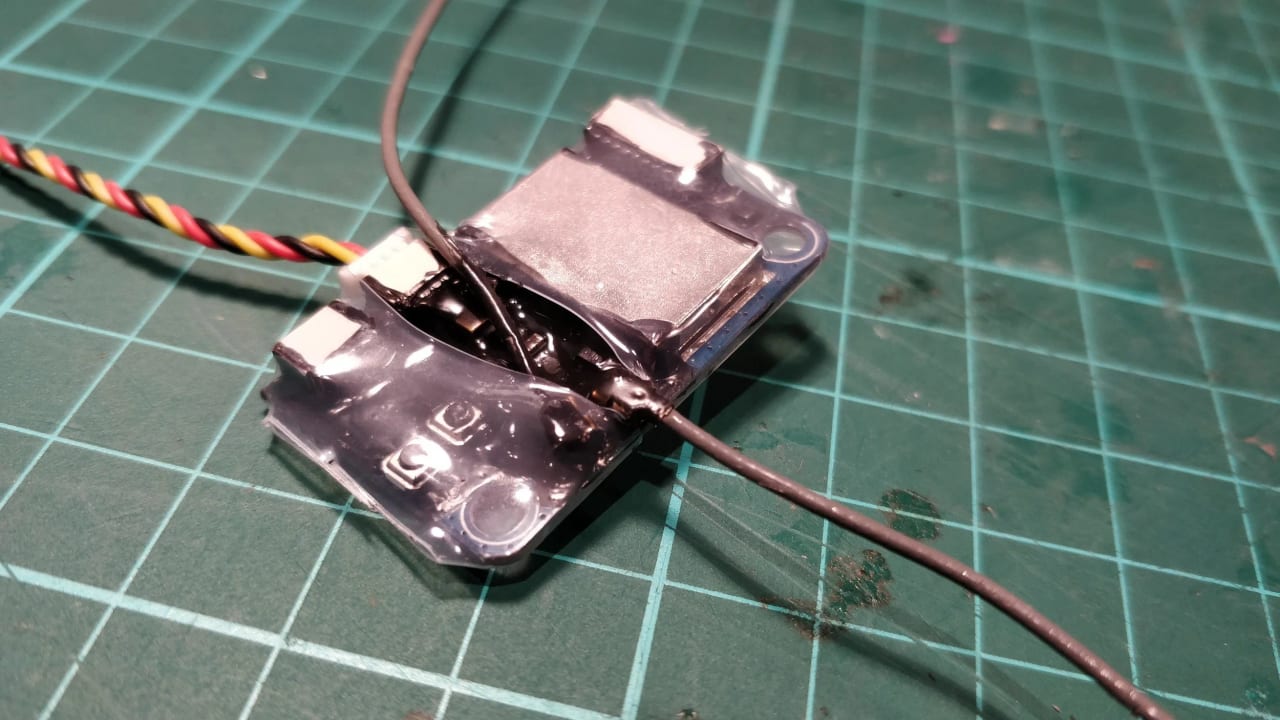

Preparing receiver

I am big fan of liquid electrical tape - so called Plasti Dip - which I use pretty much on anything.

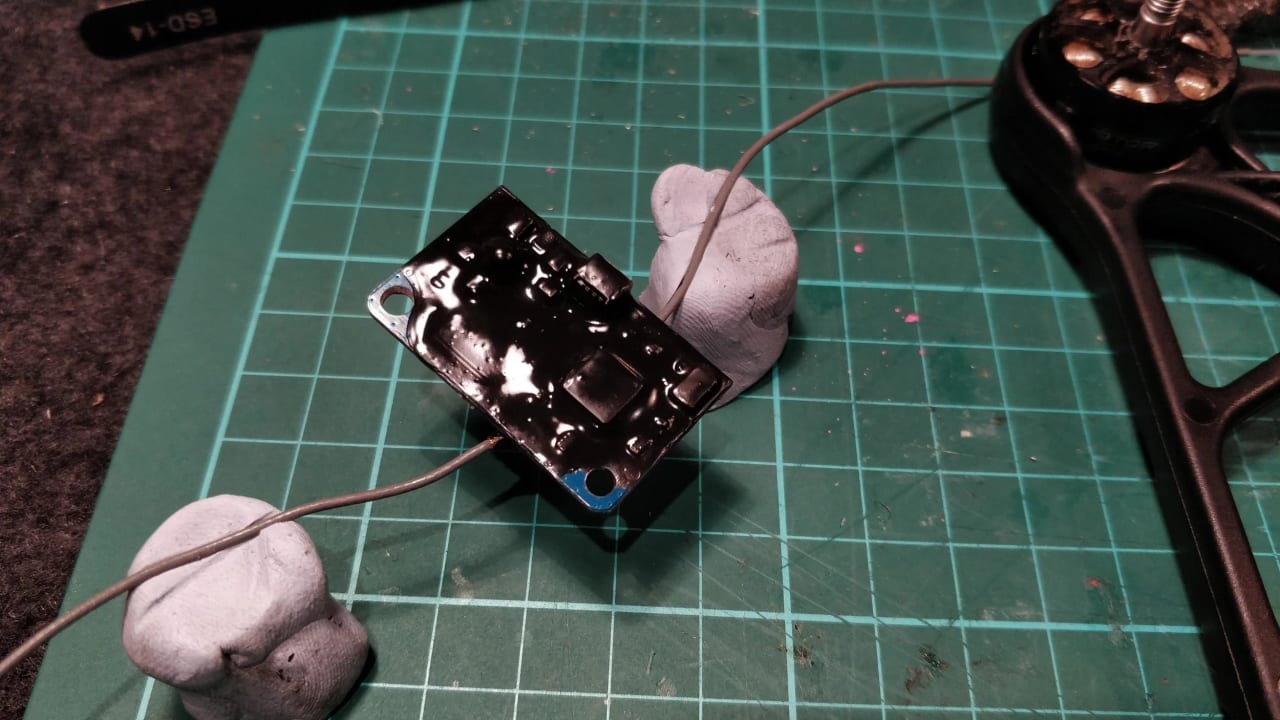

View fullsize IMG_20180612_011507.jpg

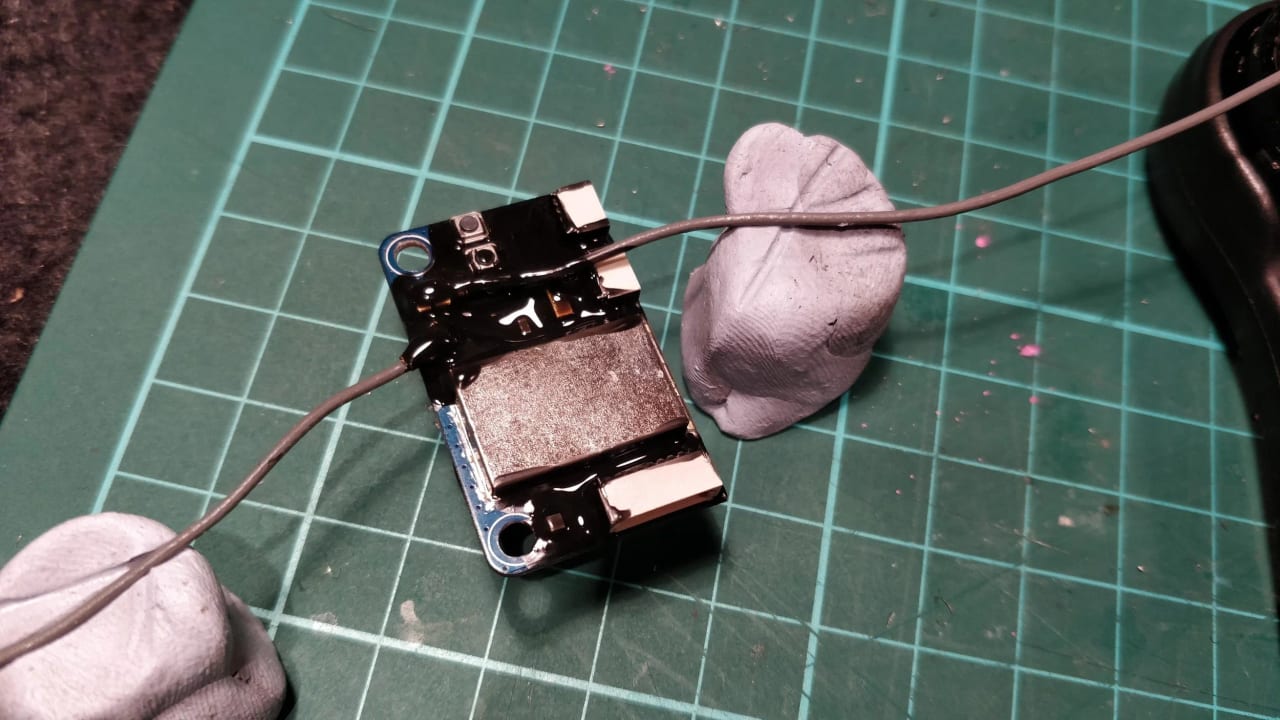

View fullsize IMG_20180612_011521.jpg

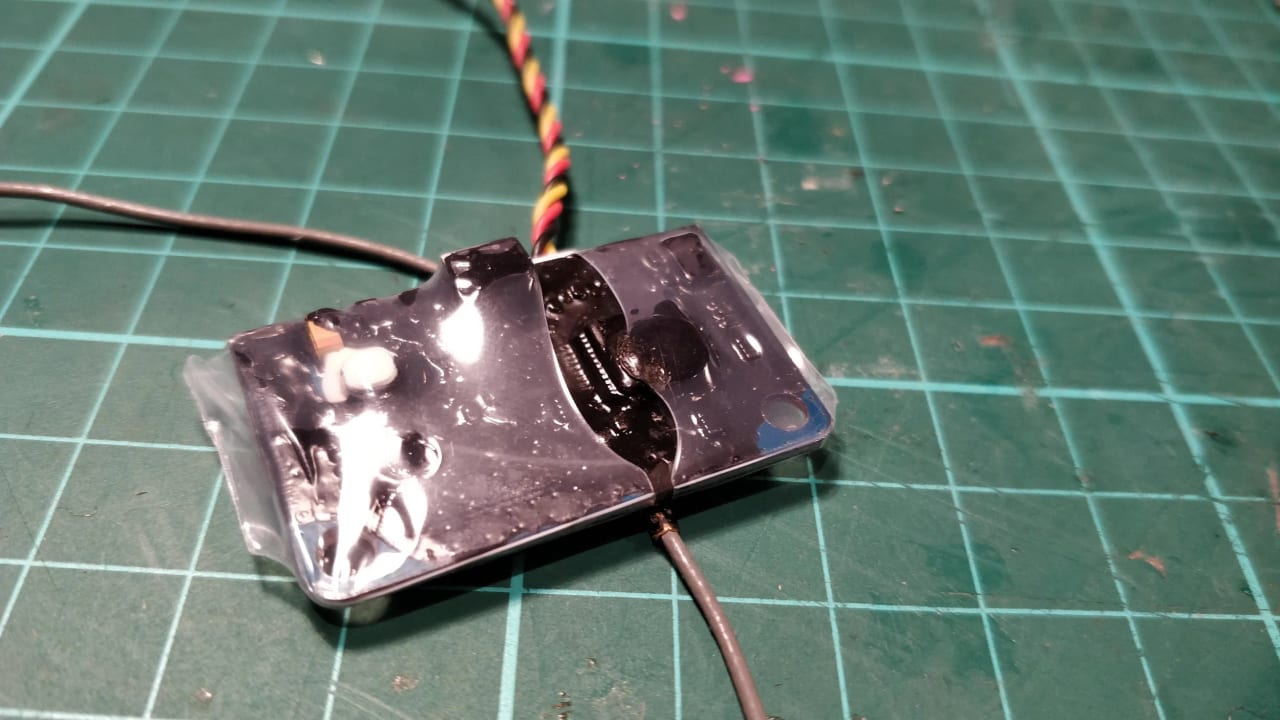

View fullsize IMG_20180612_013348.jpg

View fullsize IMG_20180612_013356.jpg

Wiring motors

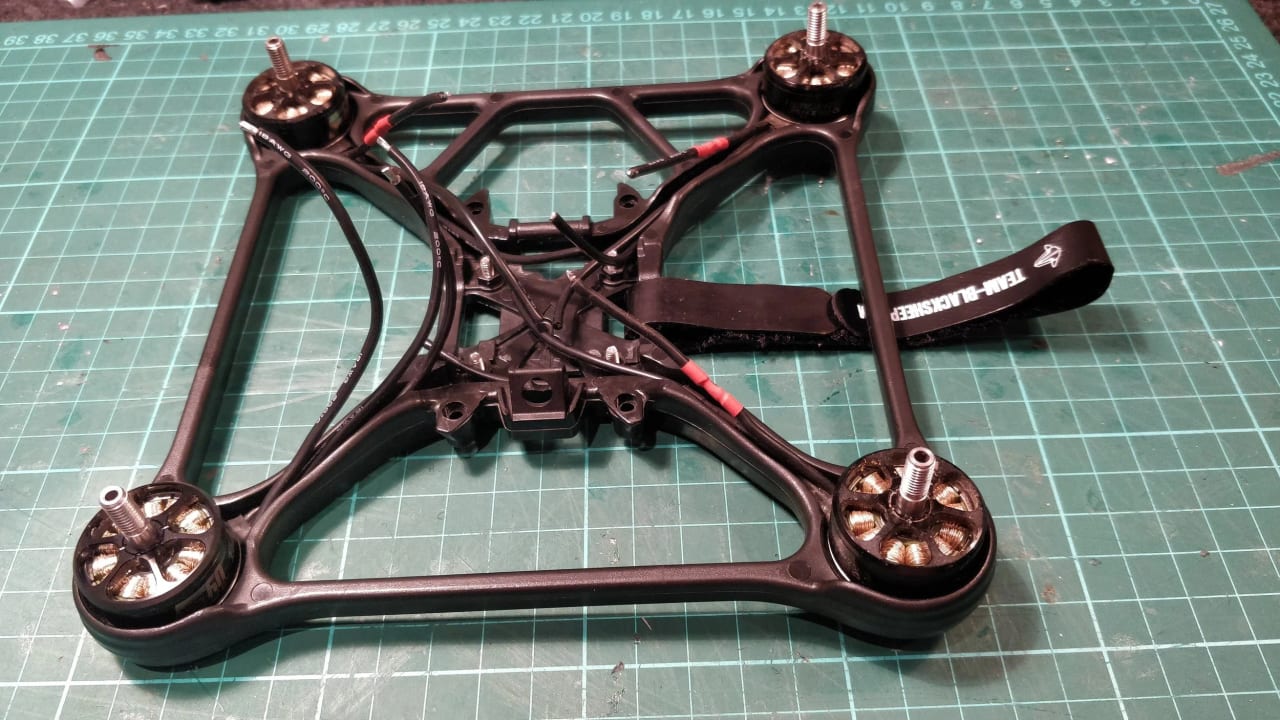

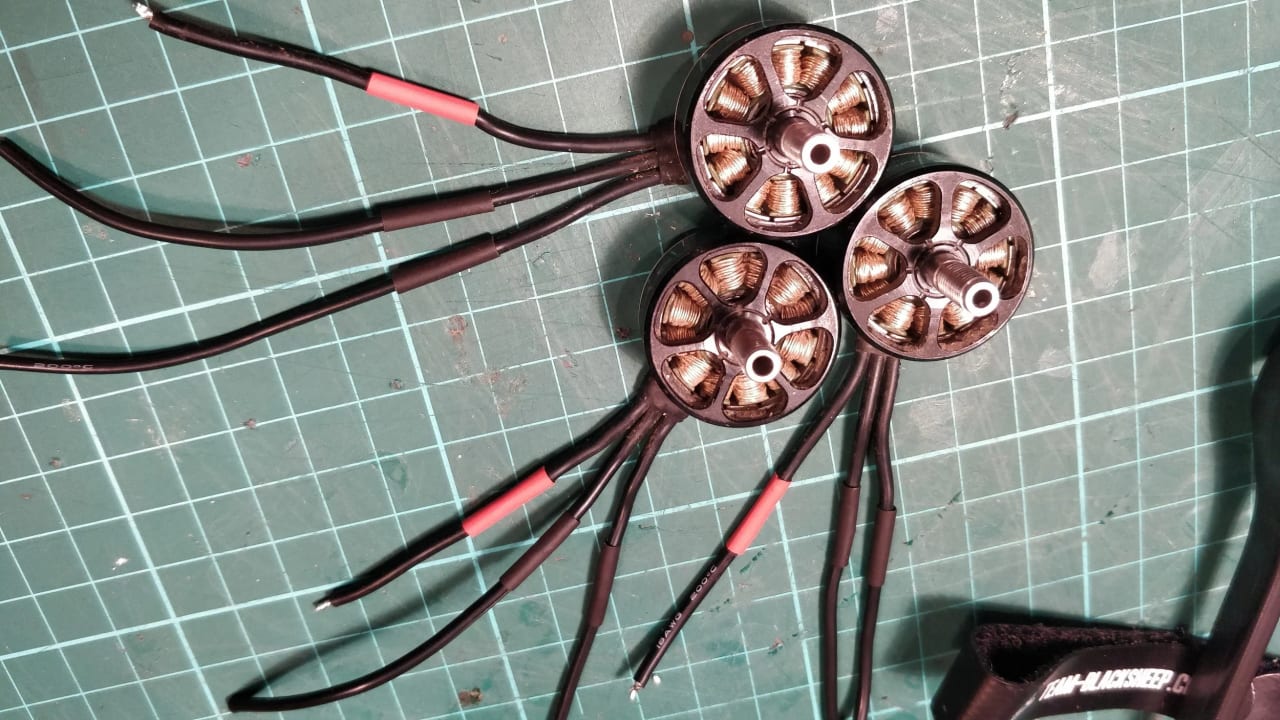

Reusing motors from a previous build, where one of them was broken and a replacement just arrived.

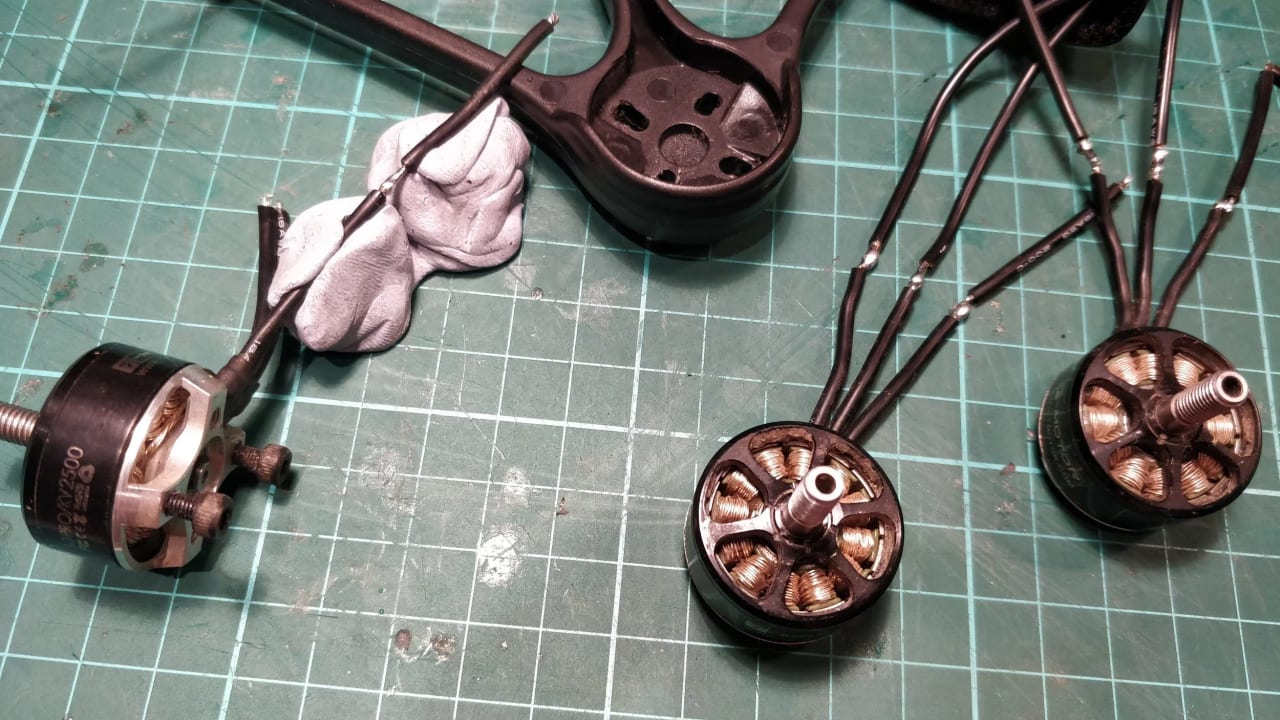

View fullsize IMG_20180612_000600.jpg

View fullsize IMG_20180612_001728.jpg

View fullsize IMG_20180612_001243.jpg

Preparing PDB

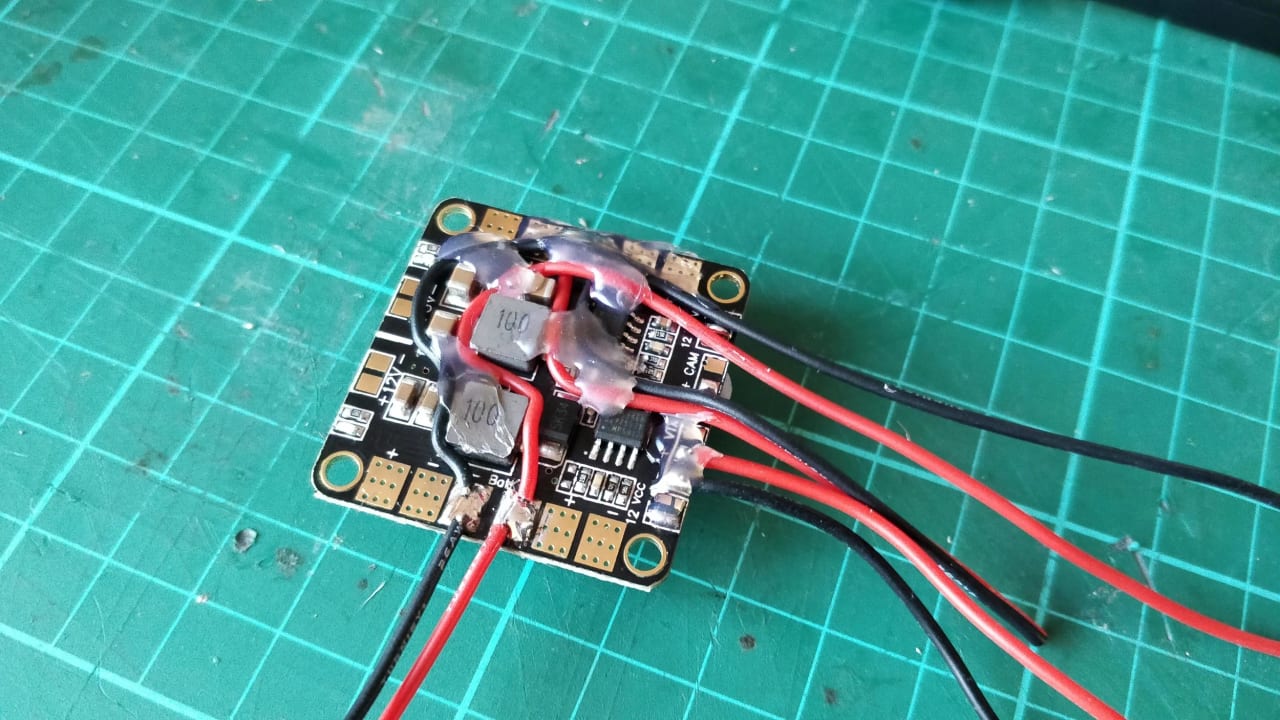

Again, using Plasti Dip and a hot glue to hold wires where I wanted them to go.

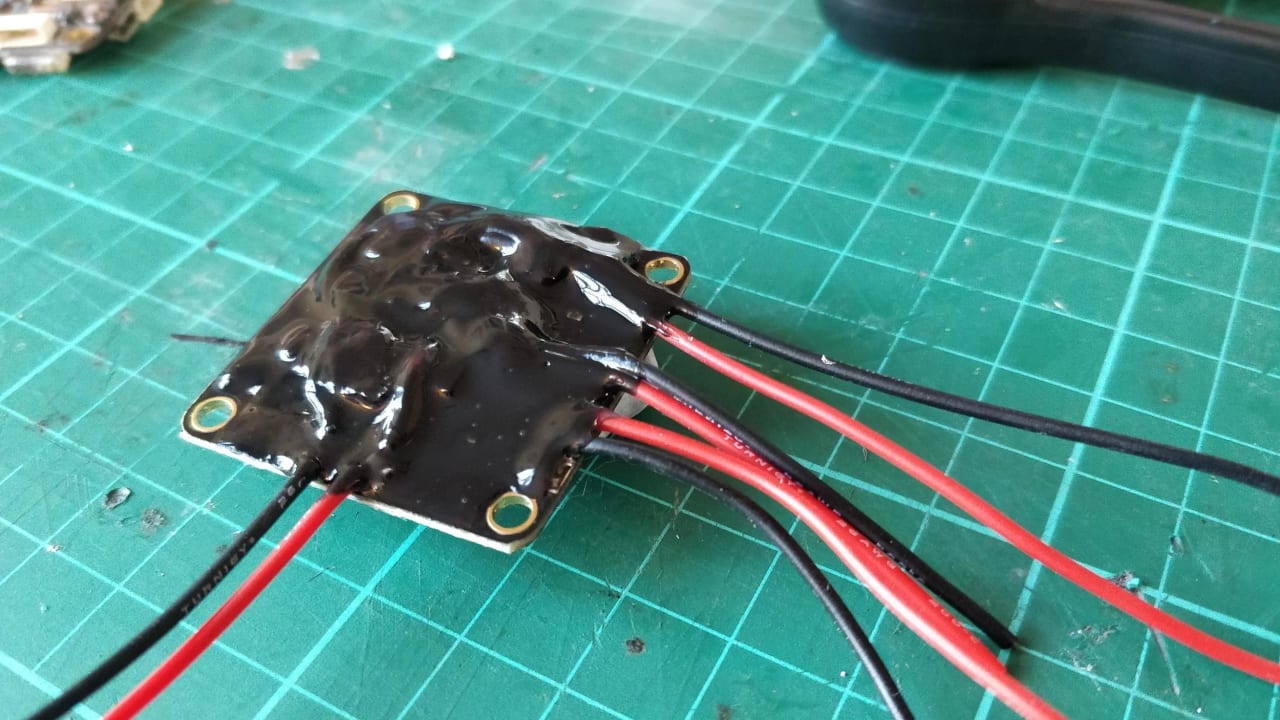

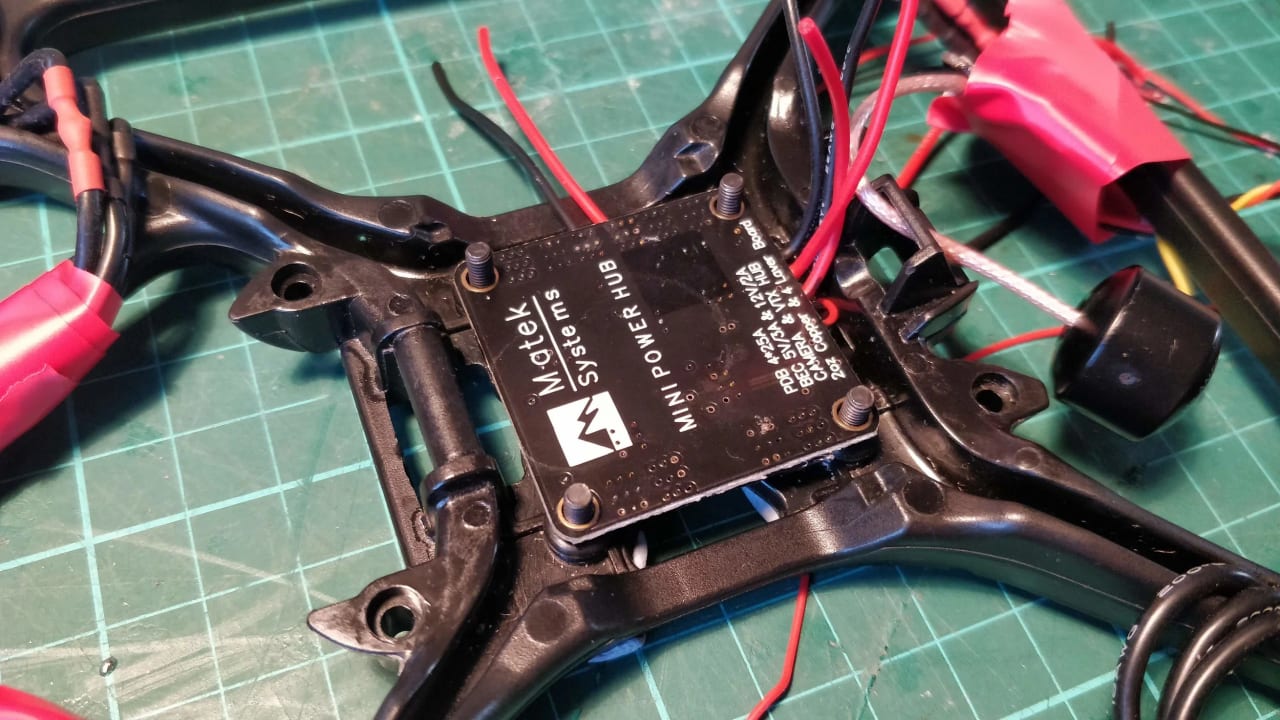

IMG_20180612_202903.jpg IMG_20180612_203246.jpg IMG_20180612_205441.jpg

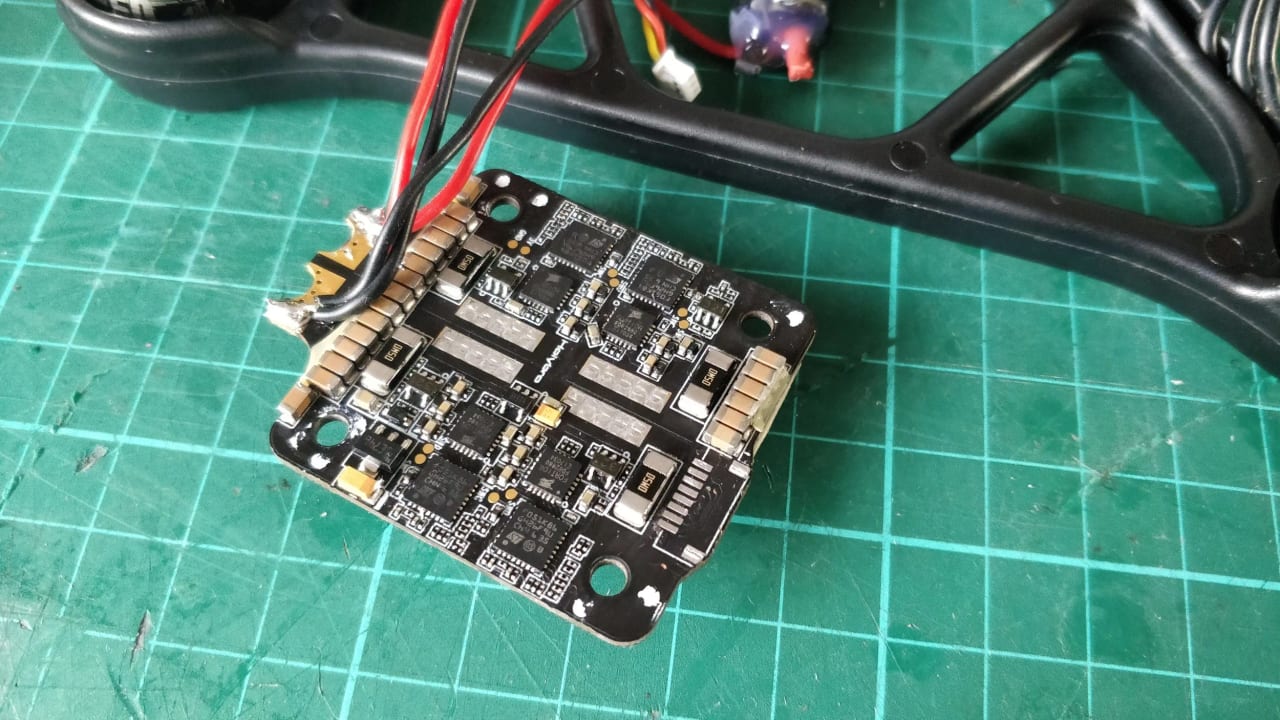

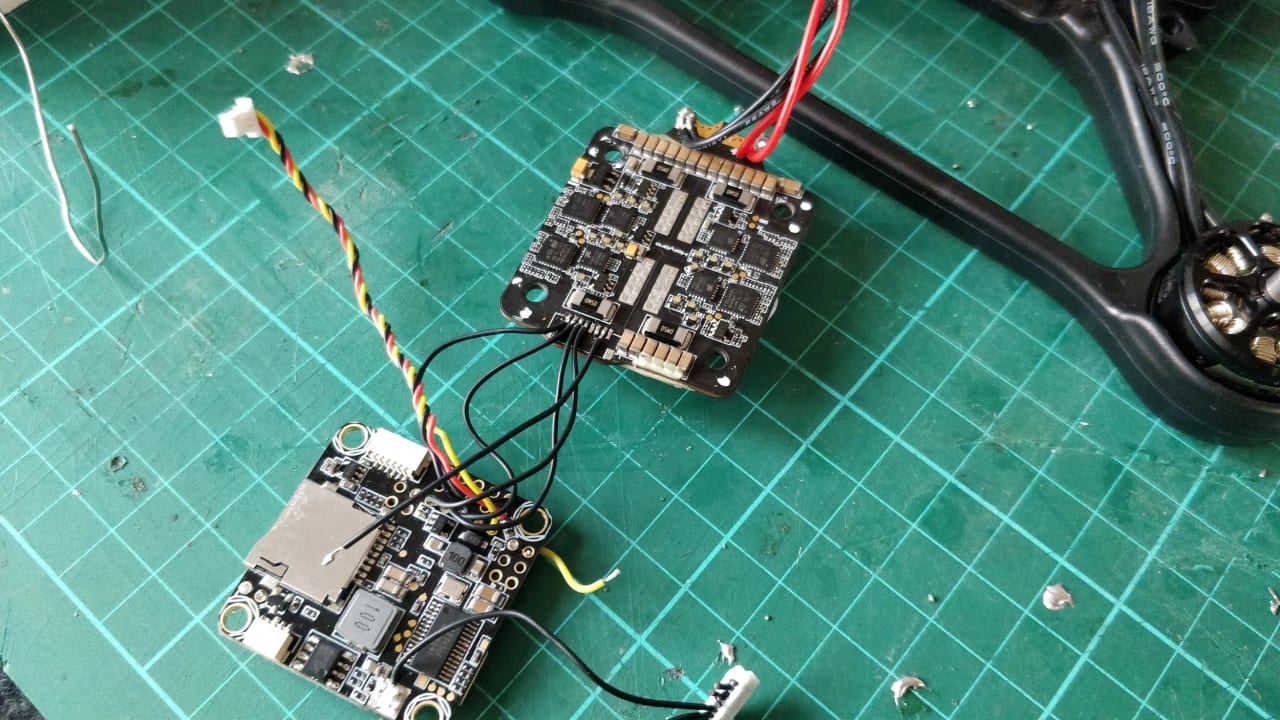

Removing ESC Connector

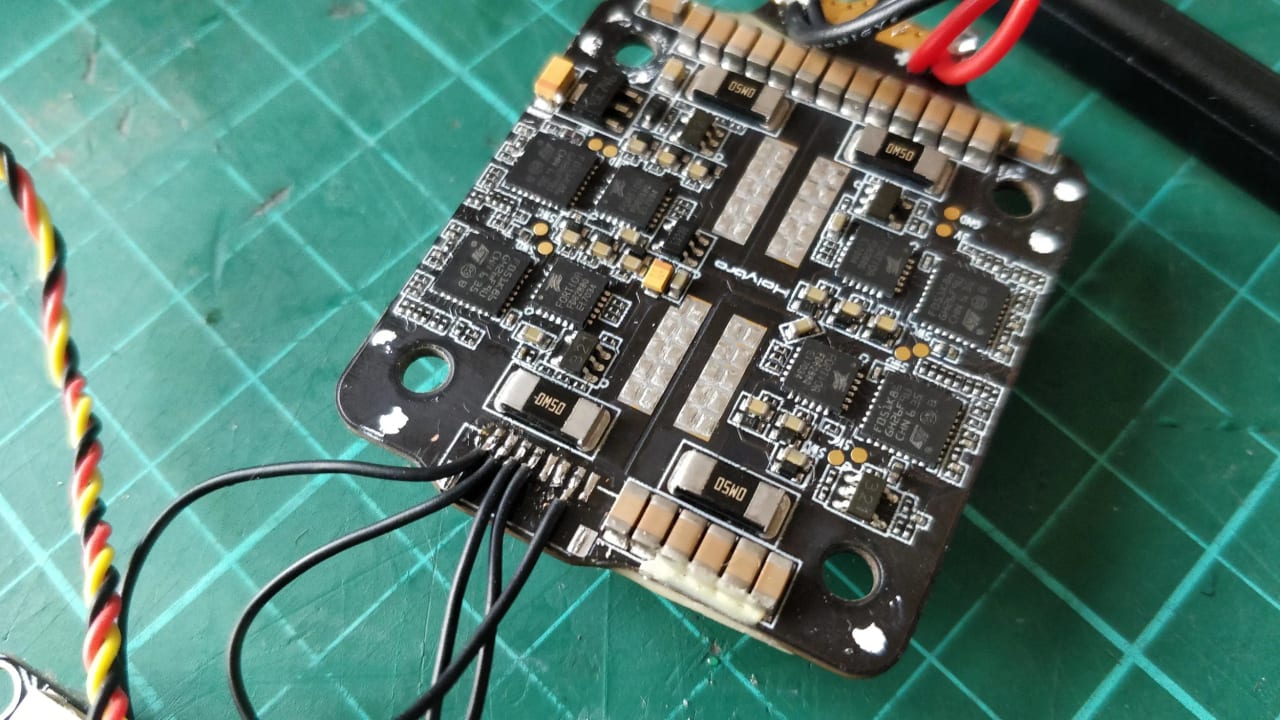

Only needed to wire 4 signal wires and the telemetry.

View fullsize IMG_20180612_192426.jpg

View fullsize IMG_20180612_194800.jpg

View fullsize IMG_20180612_194754.jpg

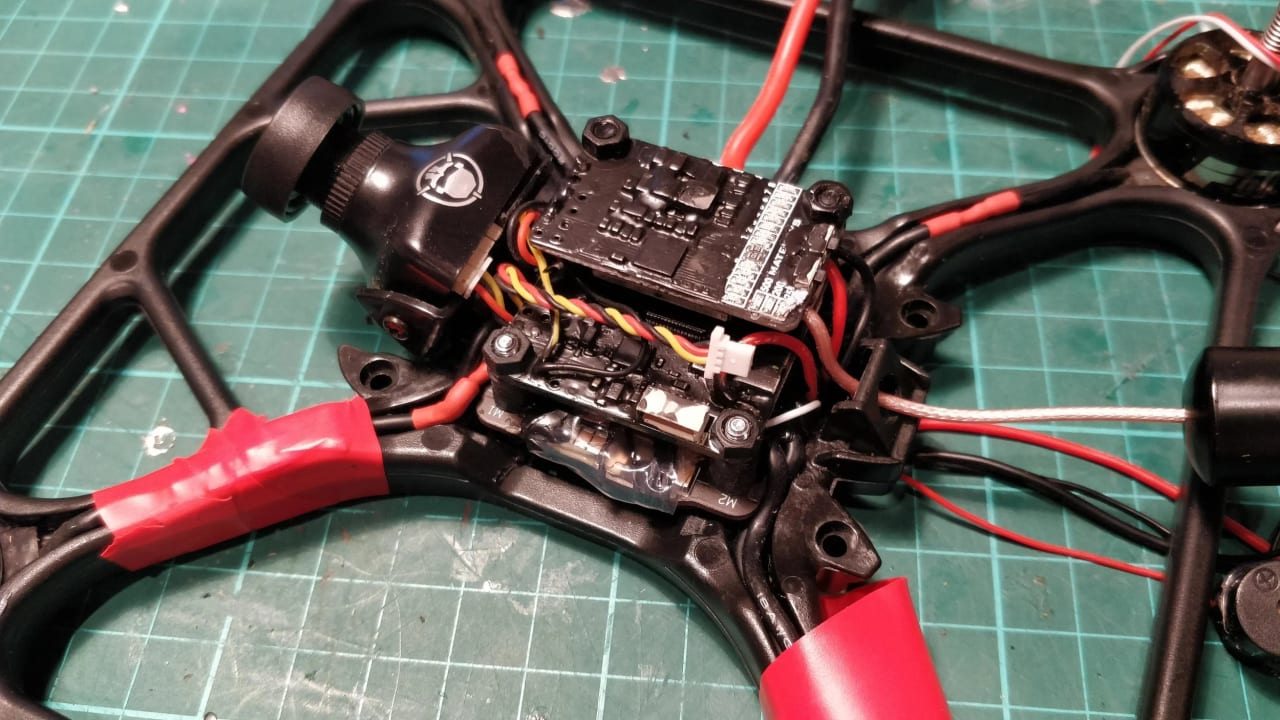

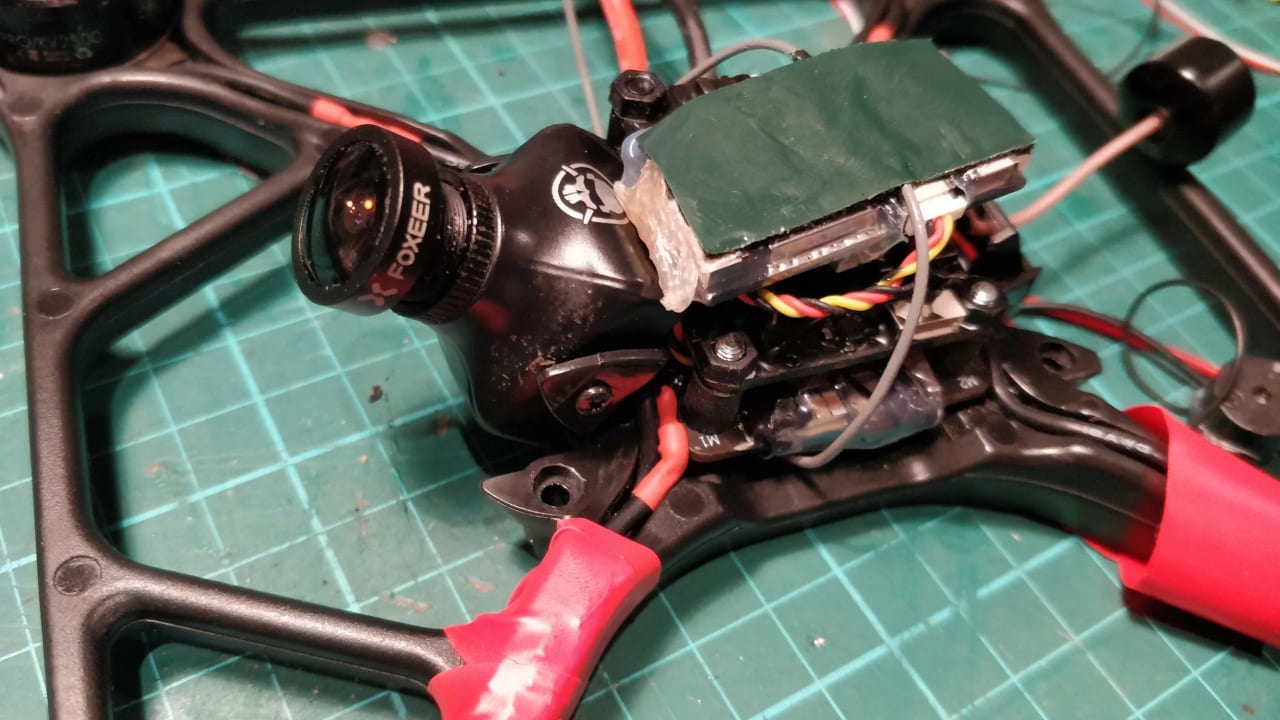

Stacking everything up

First goes the PDB, mounted on some rubber washers, then another set of washers (bit higher ones) with the ESC, next soft mounted Flight Controller, next is VTX on one side and lastly a loose Receiver. All coated with Plasti Dip. With his setup I didn’t have any noise with the video feed, but I added capacitor anyways with intention to place it outside on one of the arms.

View fullsize IMG_20180612_205441.jpg

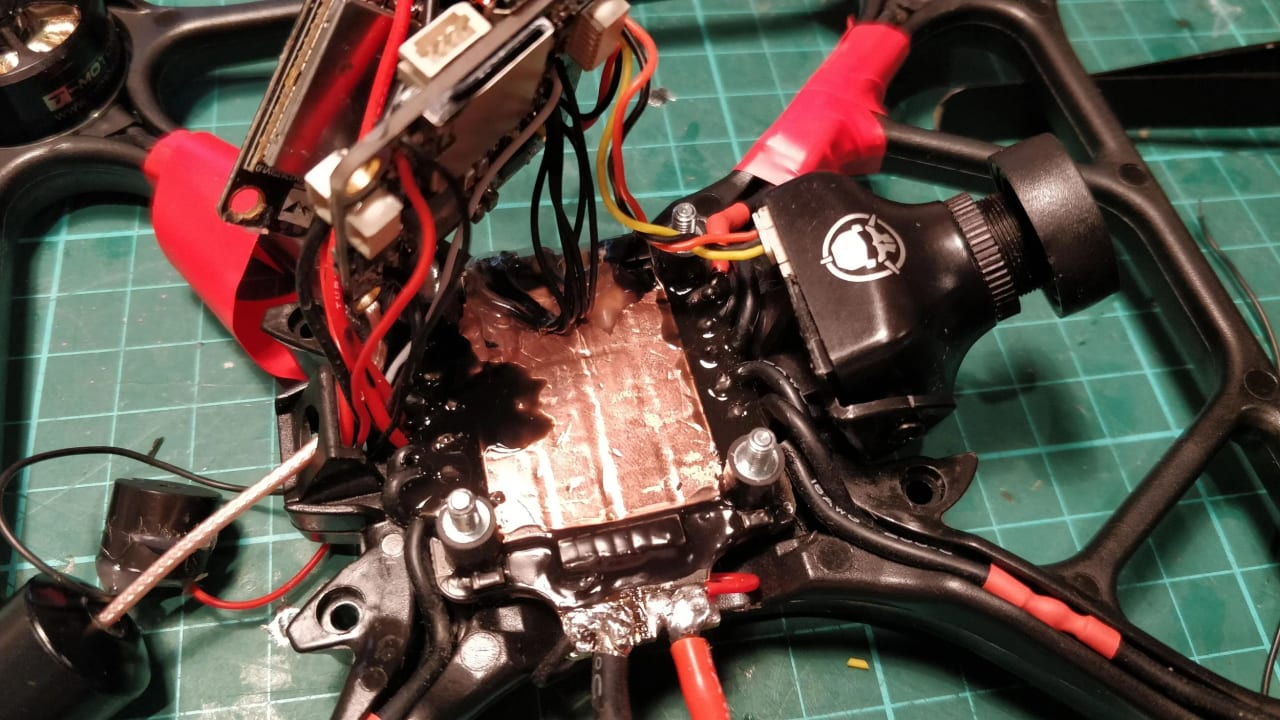

View fullsize IMG_20180612_233353.jpg

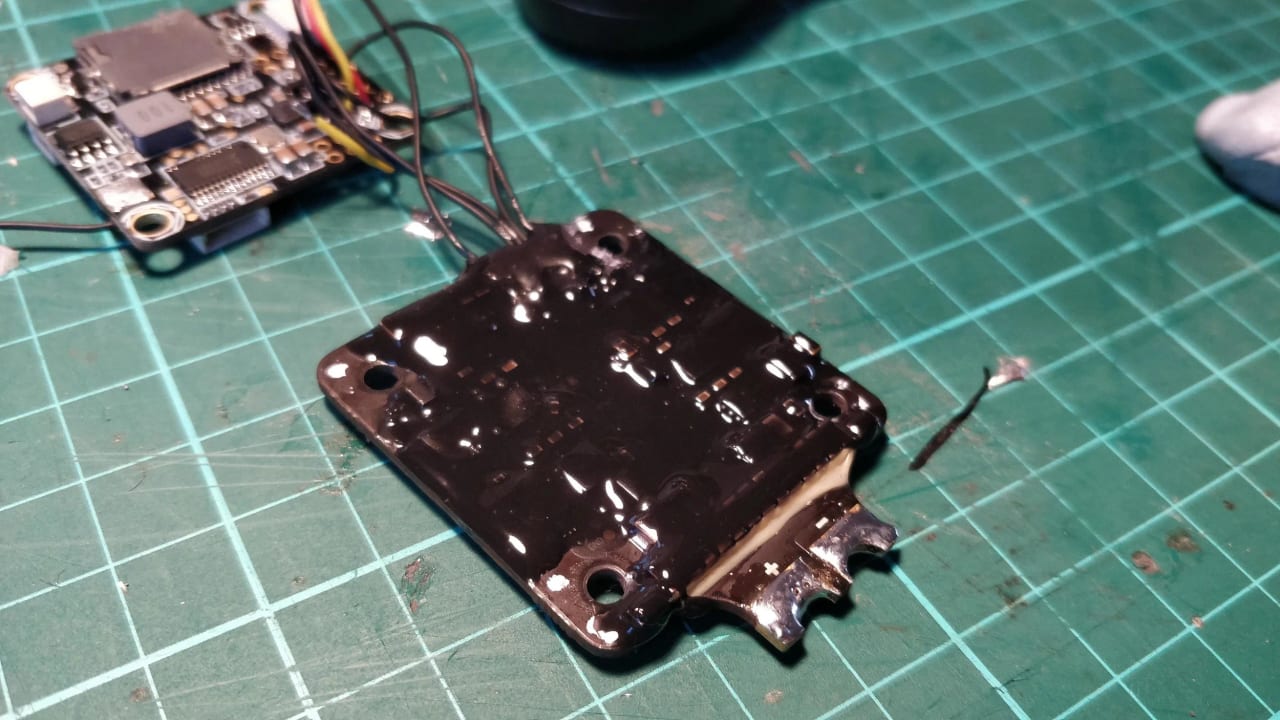

View fullsize IMG_20180612_210051.jpg

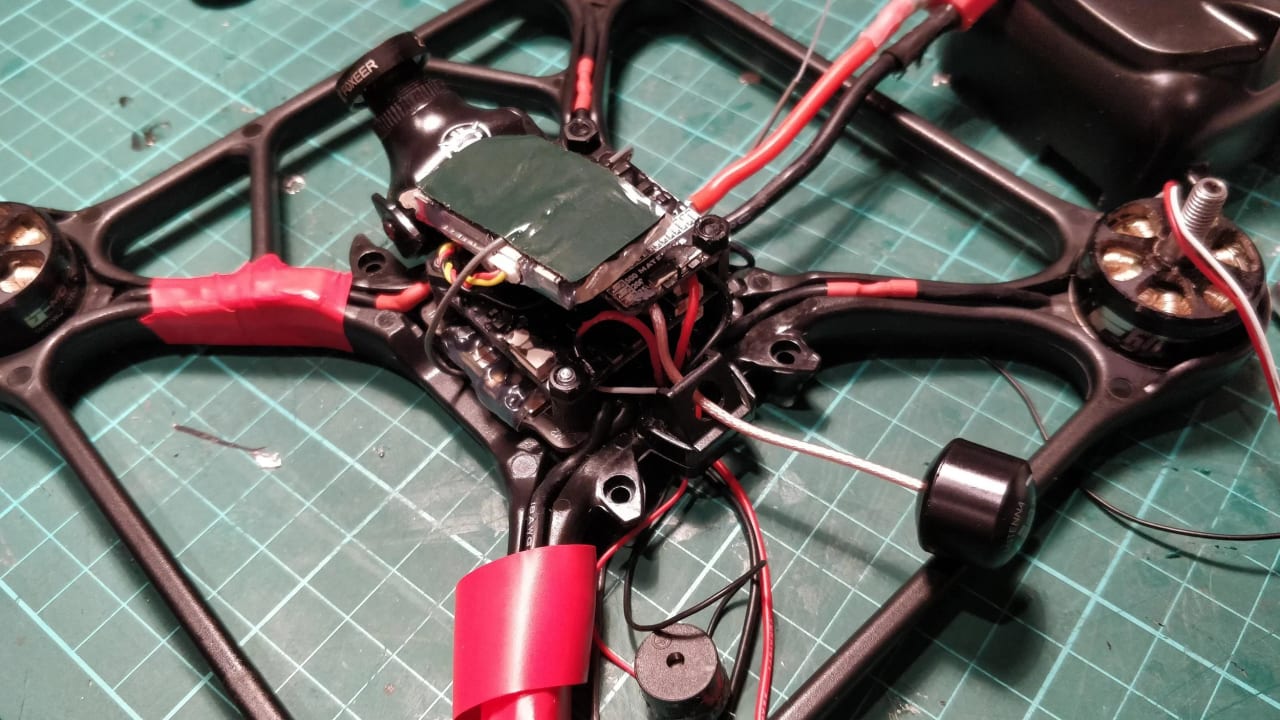

View fullsize IMG_20180613_000031.jpg

View fullsize IMG_20180612_235646.jpg

View fullsize IMG_20180613_000034.jpg

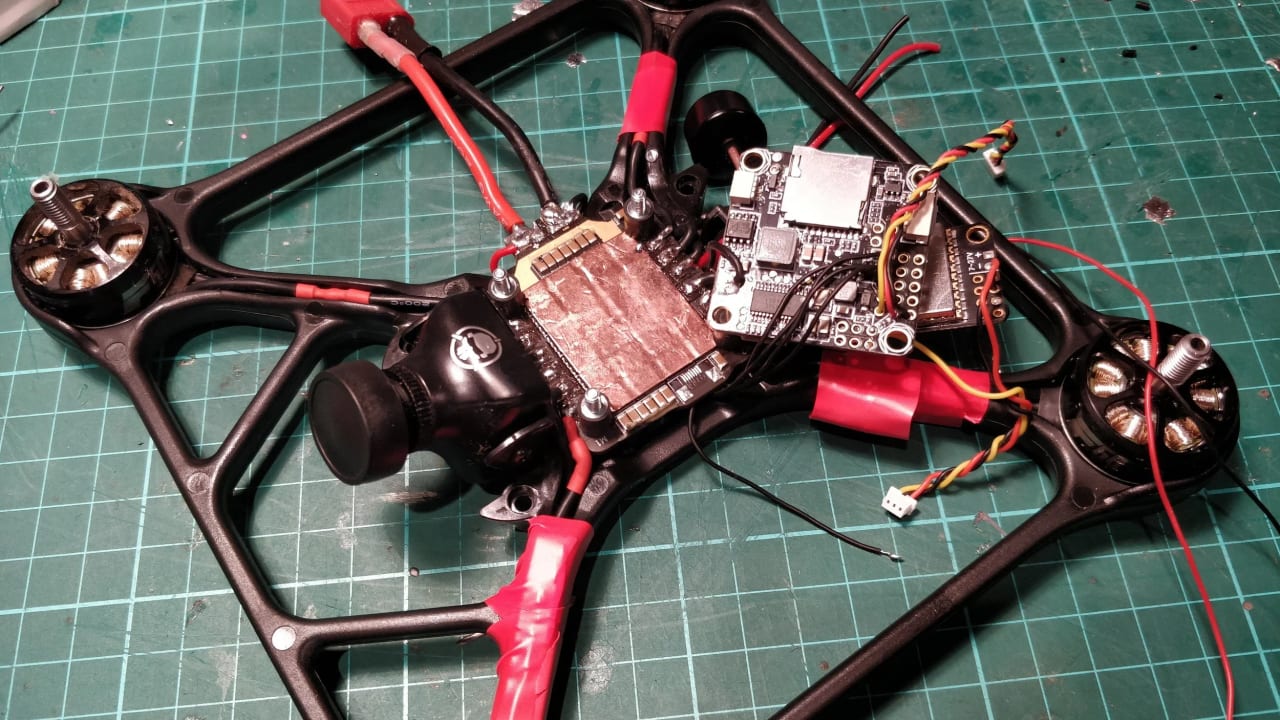

View fullsize IMG_20180612_220119.jpg

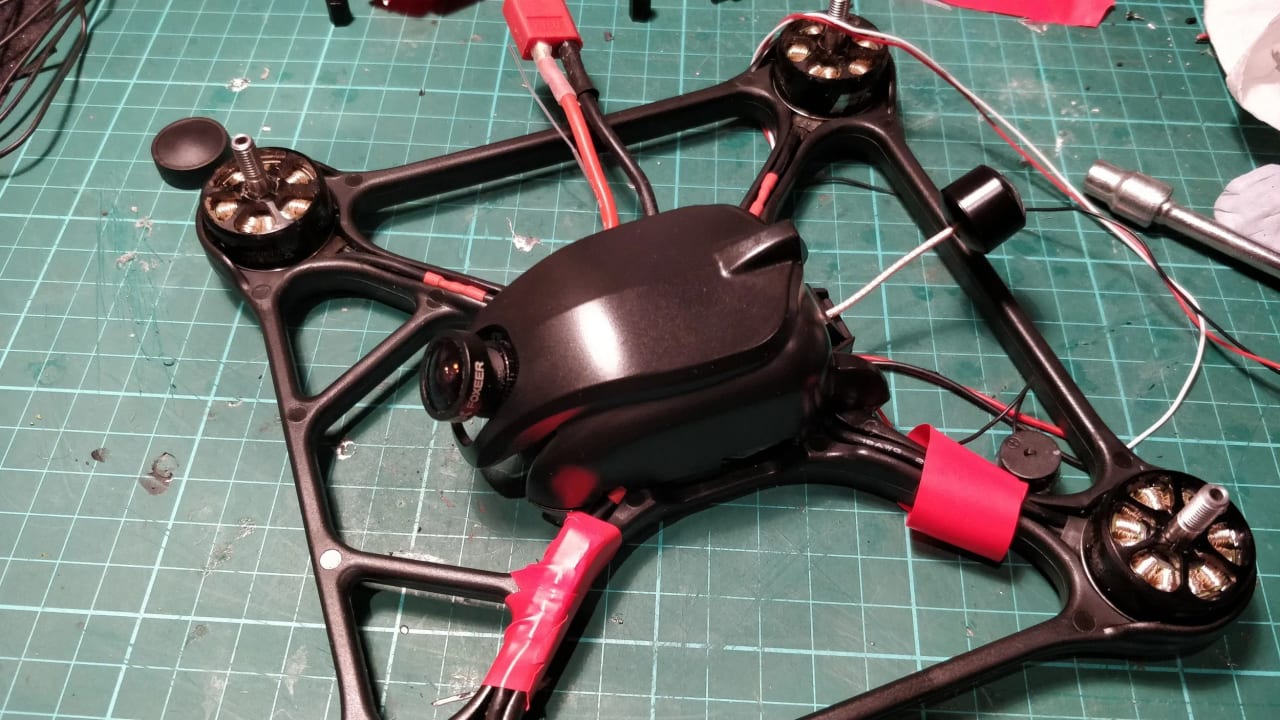

View fullsize IMG_20180613_000057.jpg

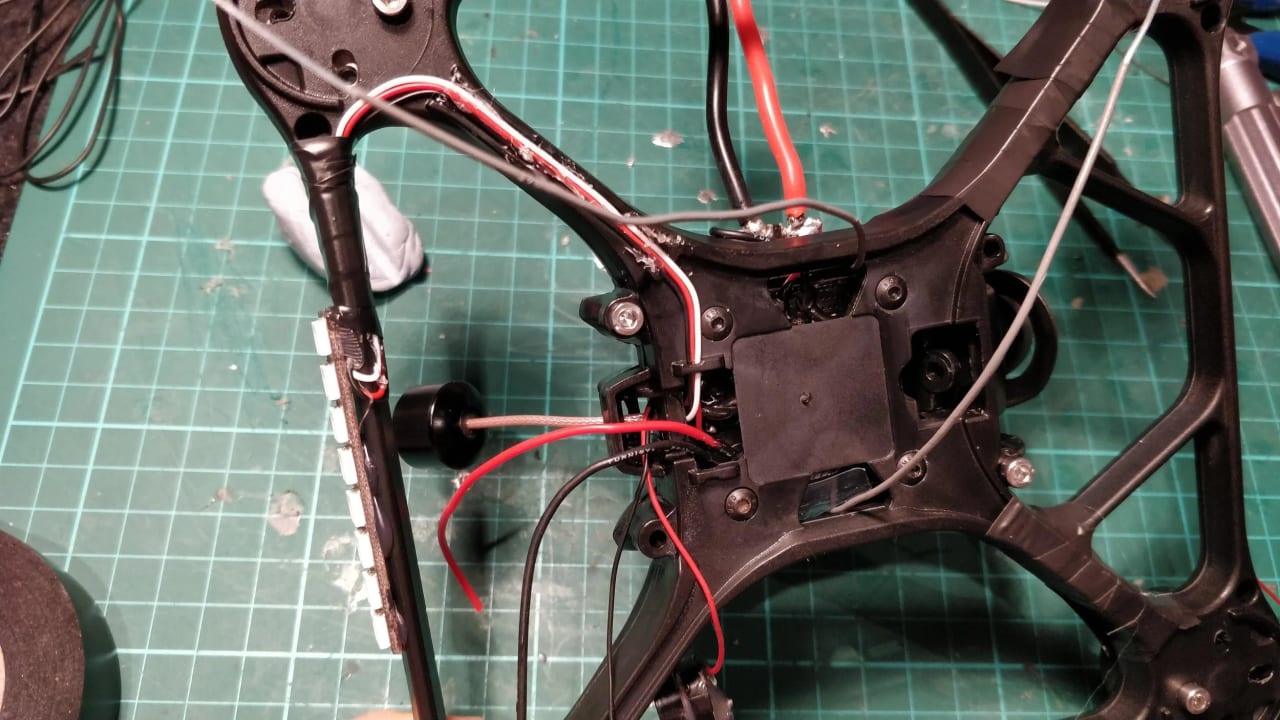

View fullsize IMG_20180613_002416.jpg

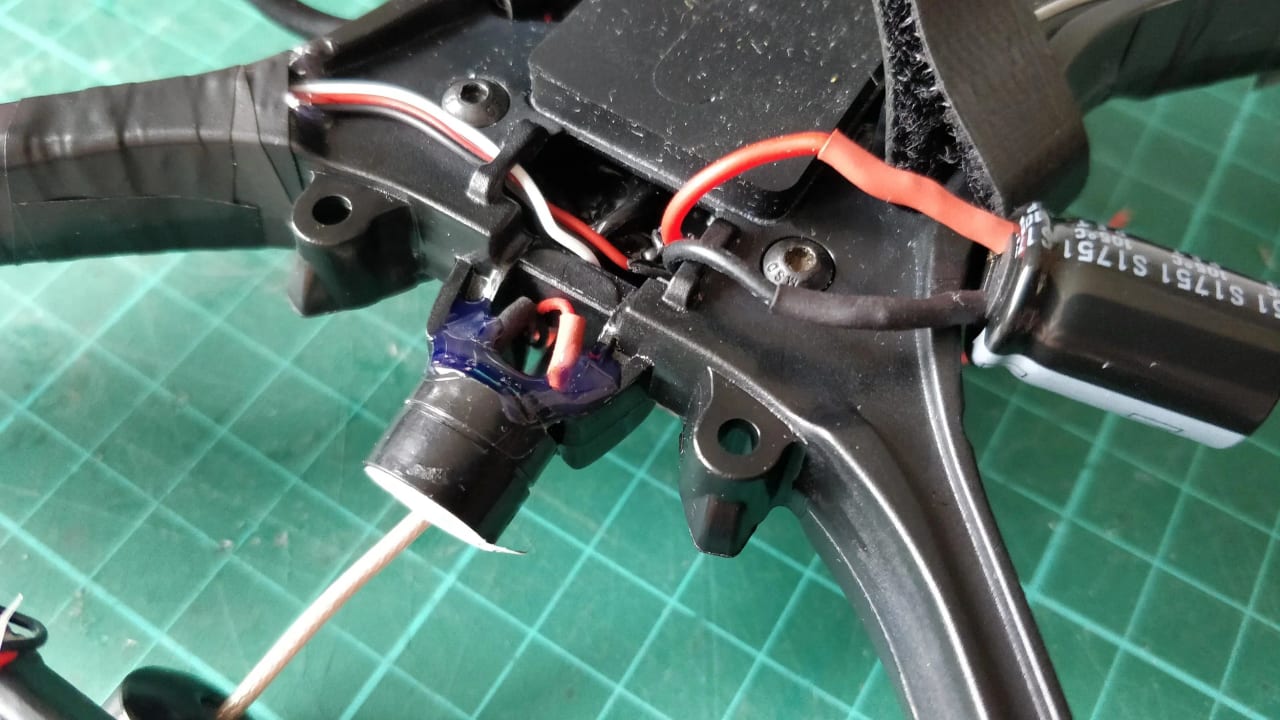

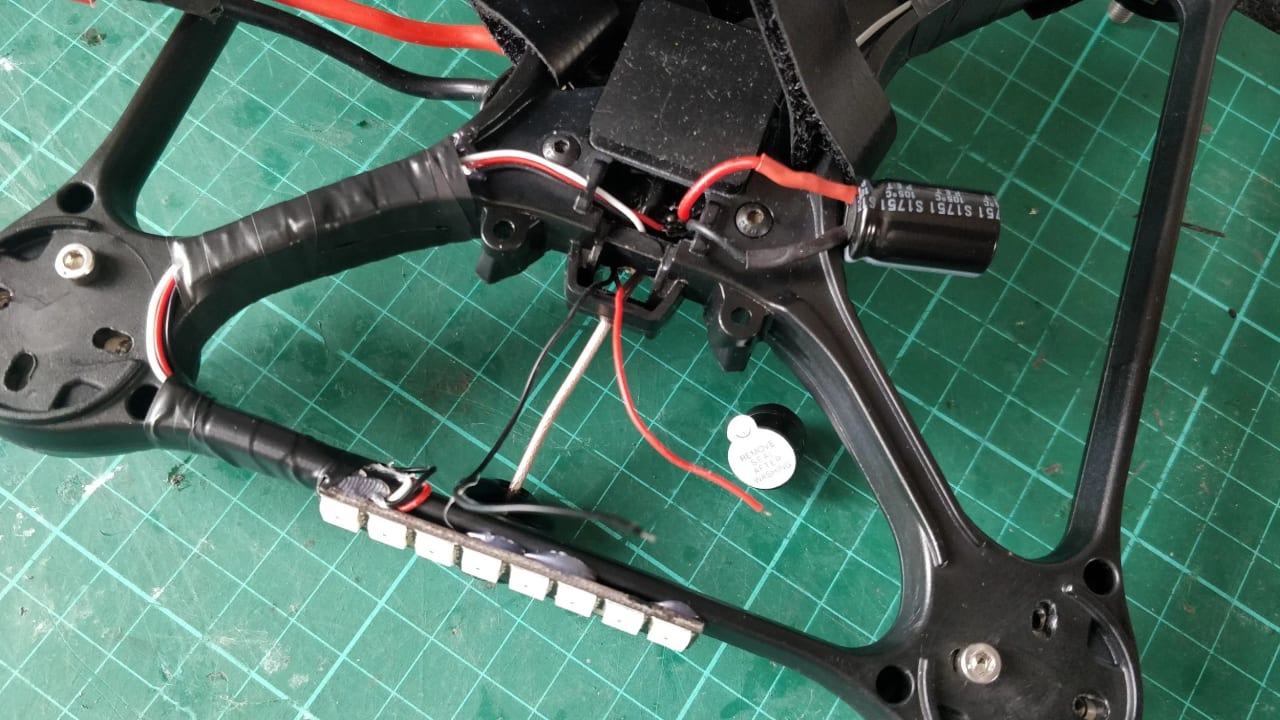

Finishing touches

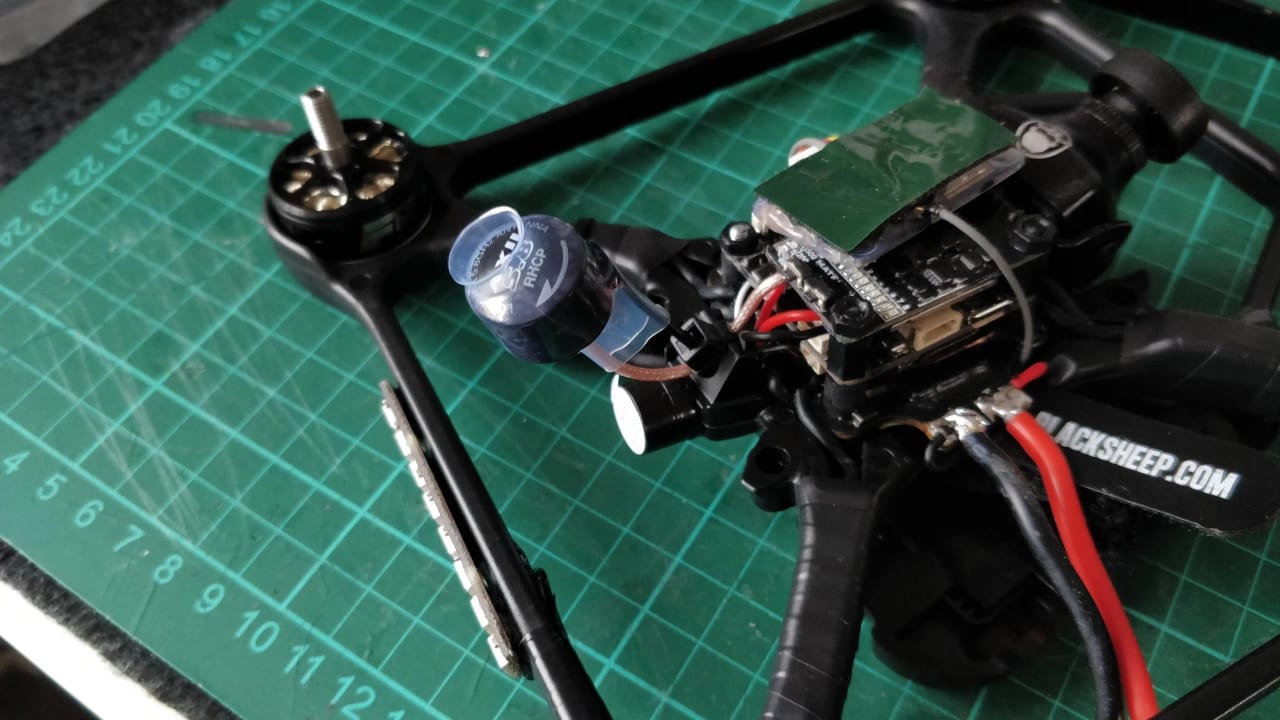

Last thing to do now was to mount capacitor, buzzer and antena so they are not getting into the way of propellers. Also put a 12AWG cable with XT60 connector instead of the temporary one that was on there from the beginning.

View fullsize IMG_20180613_171220.jpg

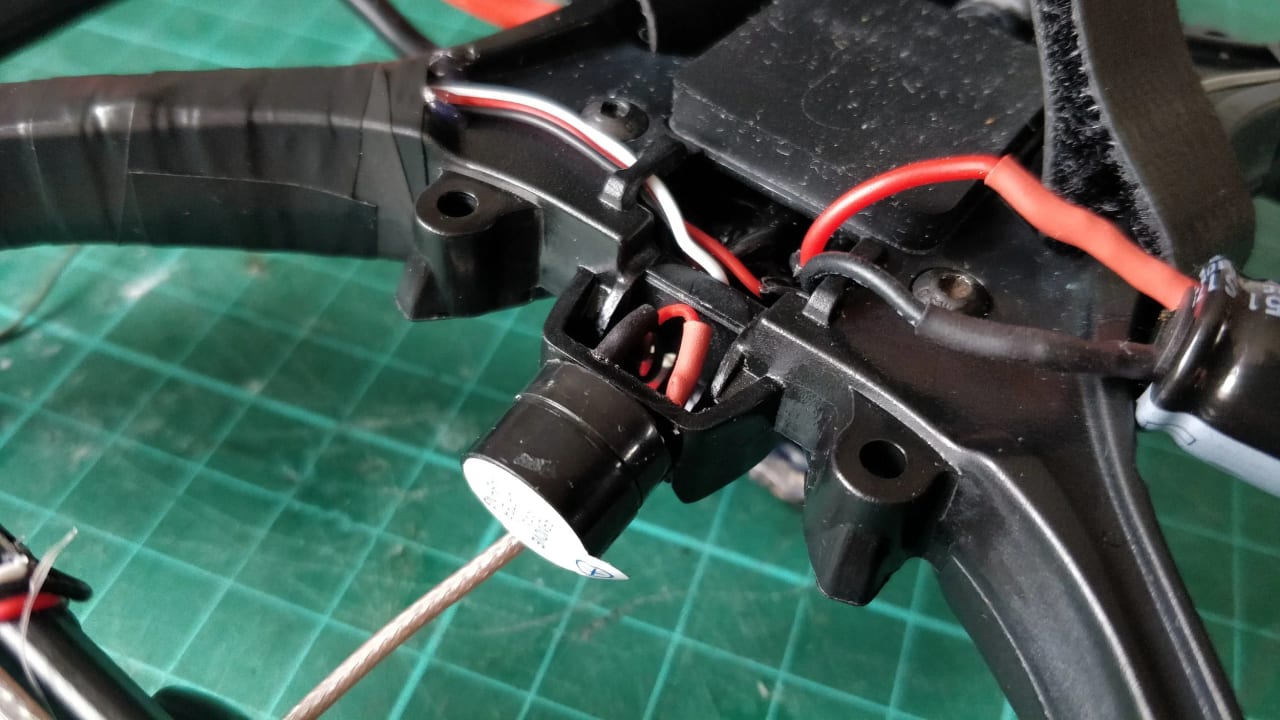

View fullsize IMG_20180613_172941.jpg

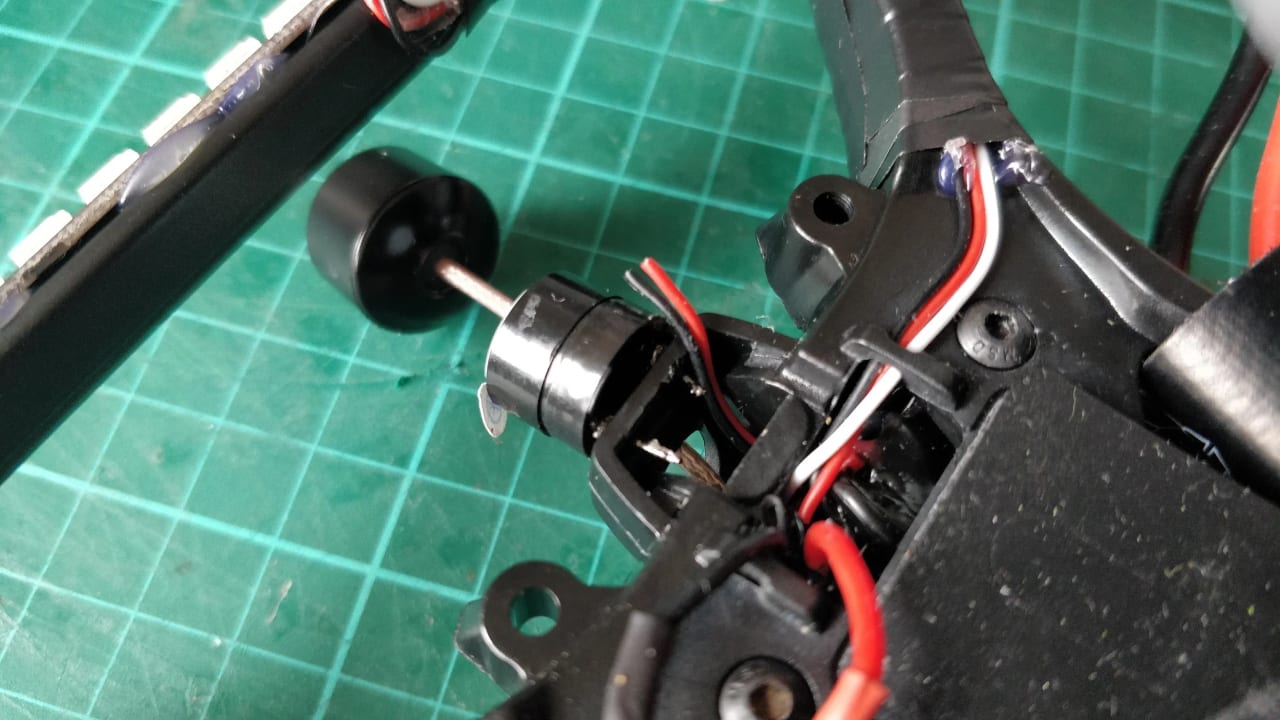

View fullsize IMG_20180613_171632.jpg

View fullsize IMG_20180613_173036.jpg

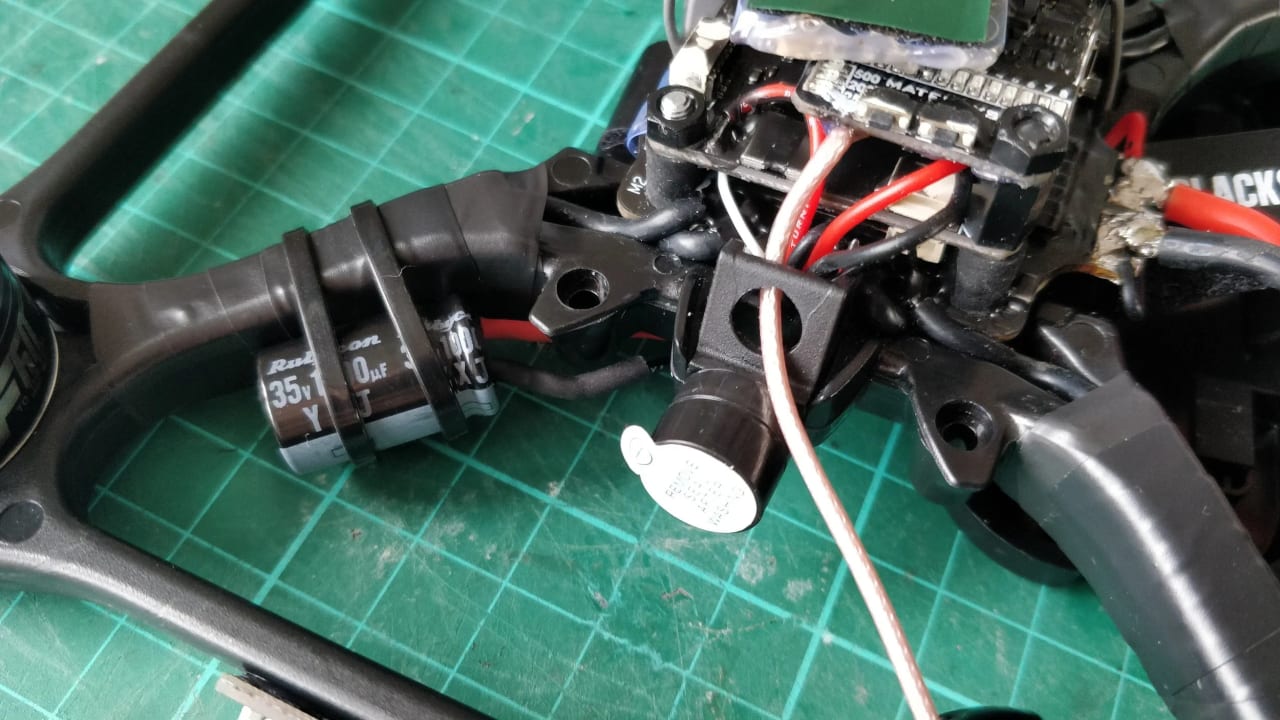

View fullsize IMG_20180613_173702.jpg

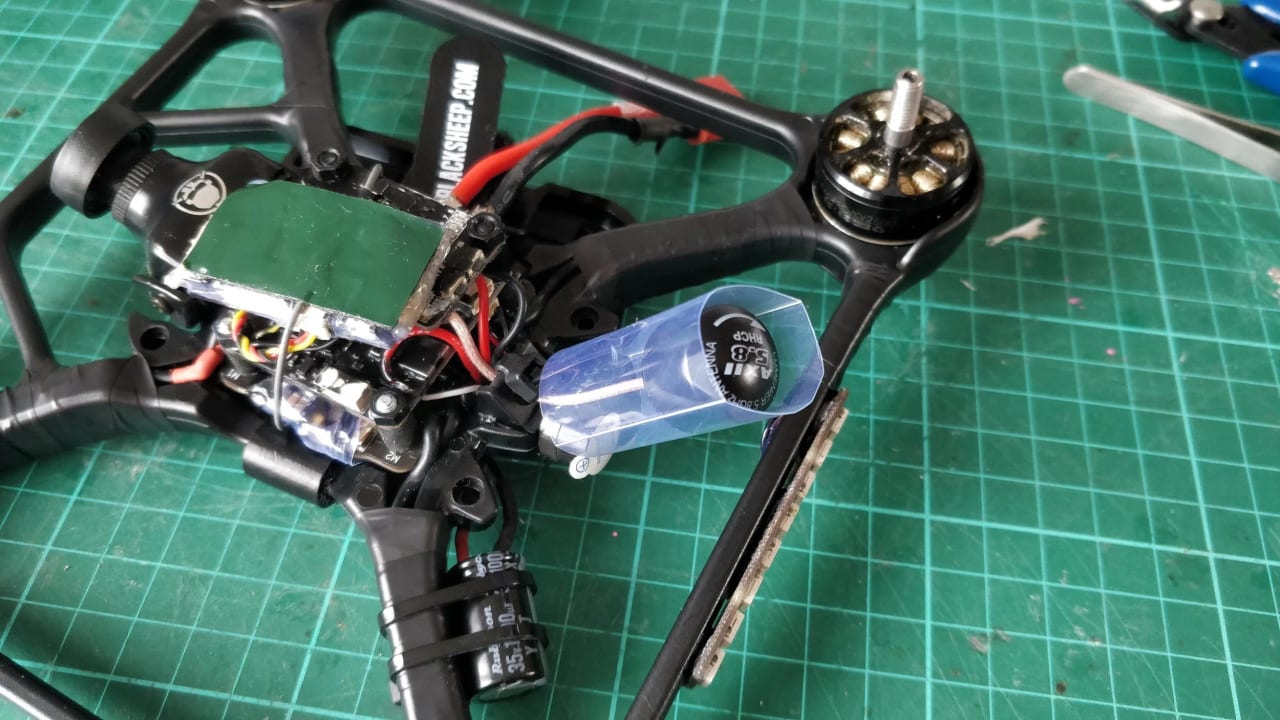

View fullsize IMG_20180613_174213.jpg

View fullsize IMG_20180613_174610.jpg

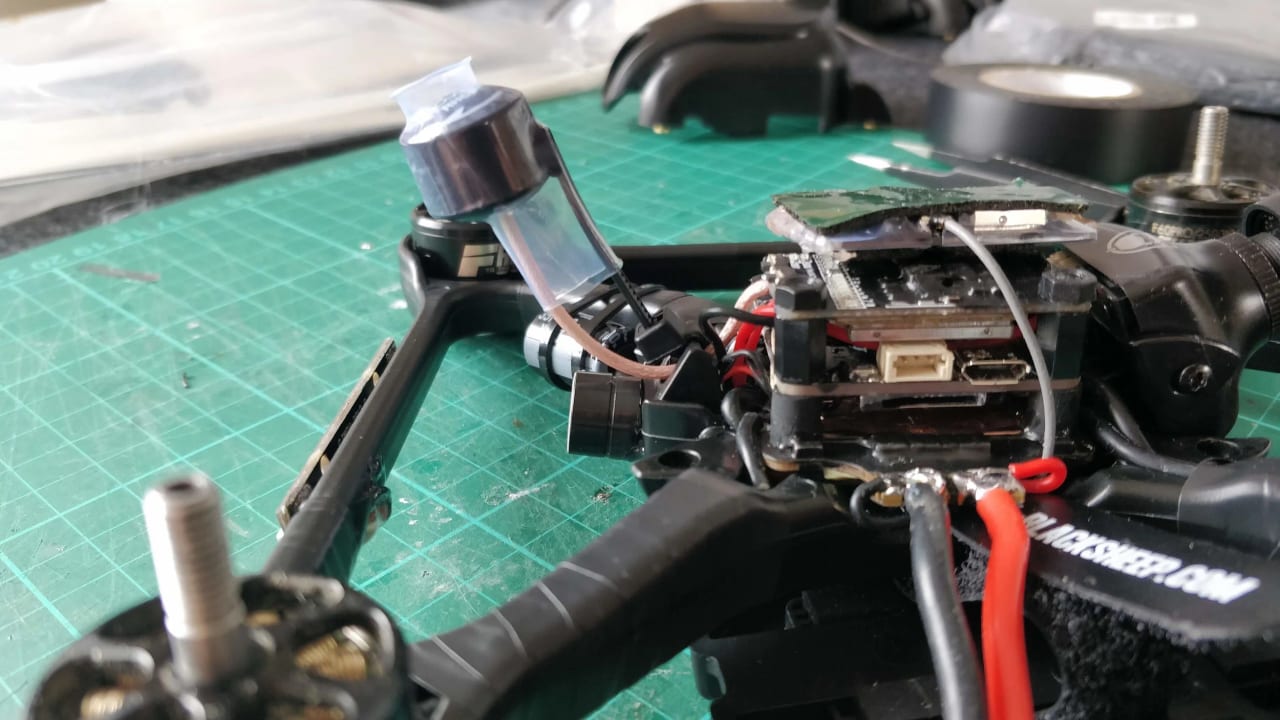

View fullsize IMG_20180613_174626.jpg

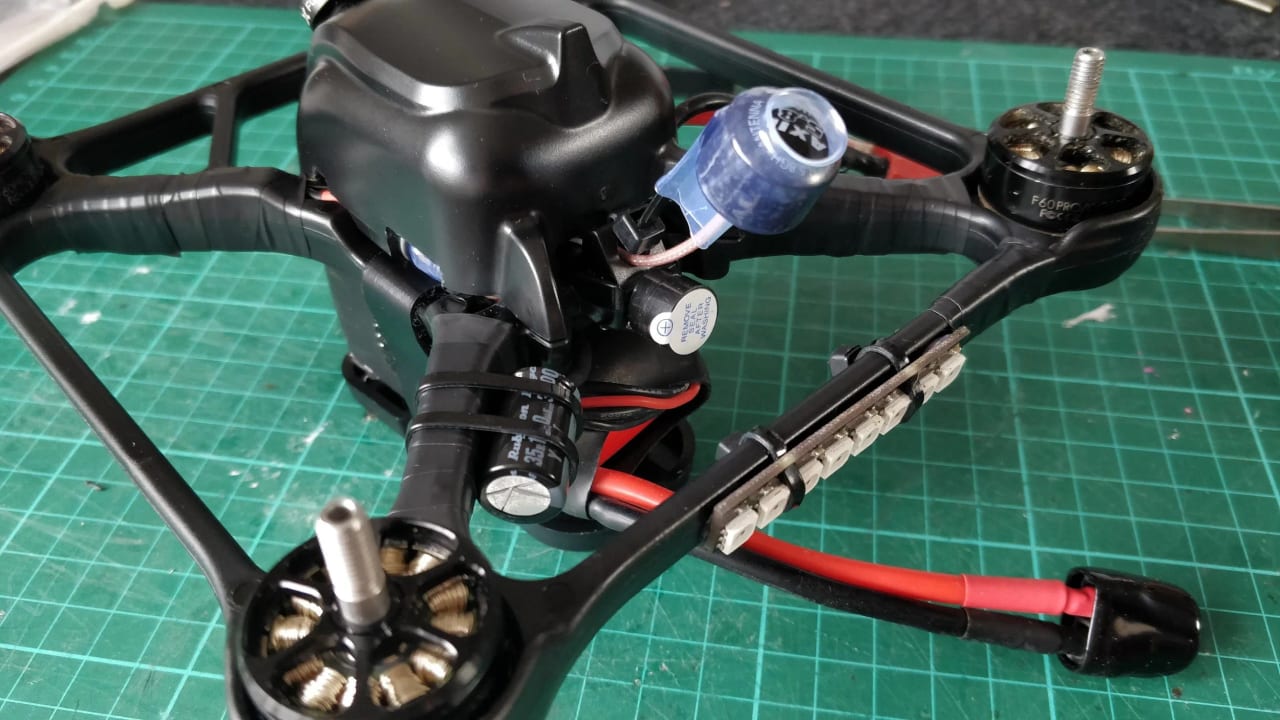

View fullsize IMG_20180613_175046.jpg

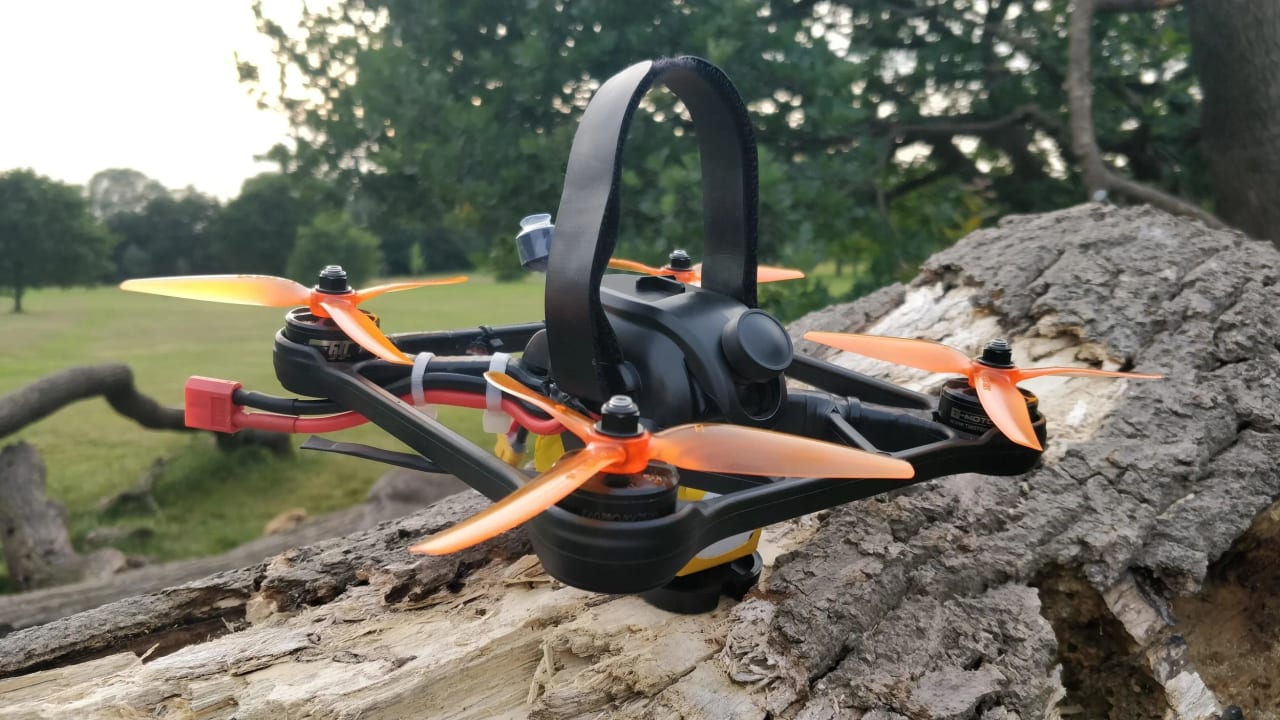

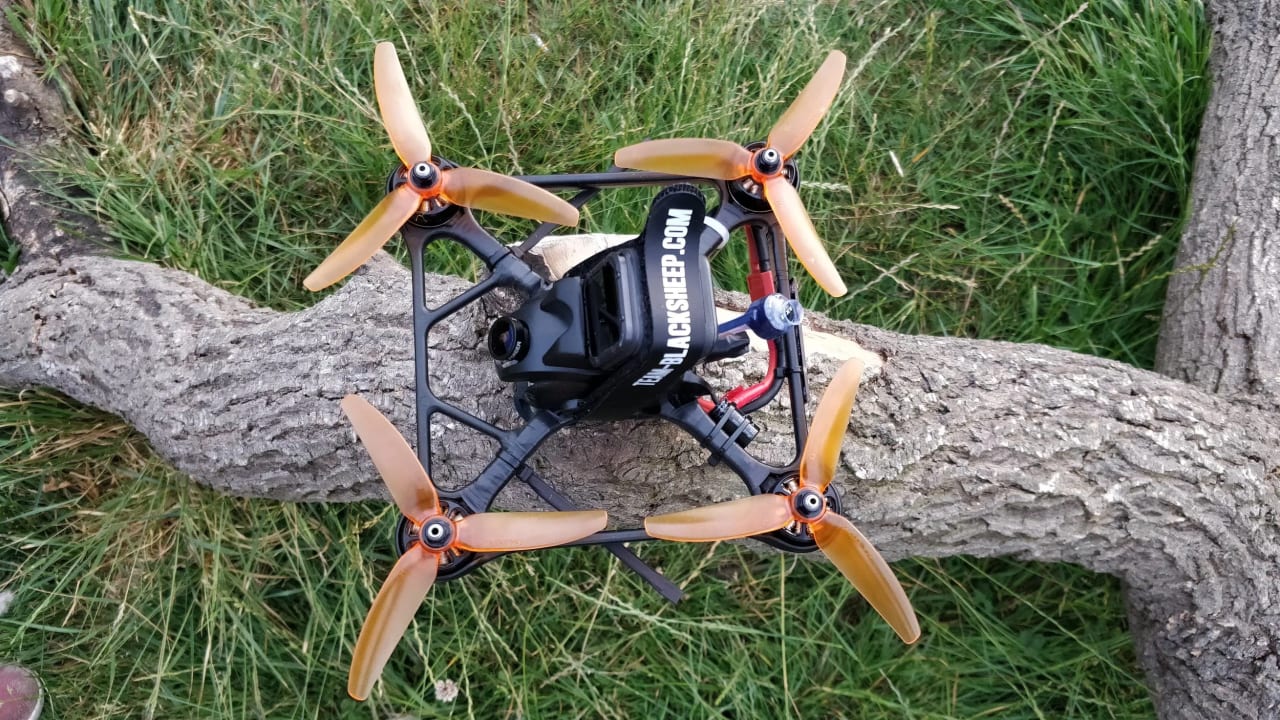

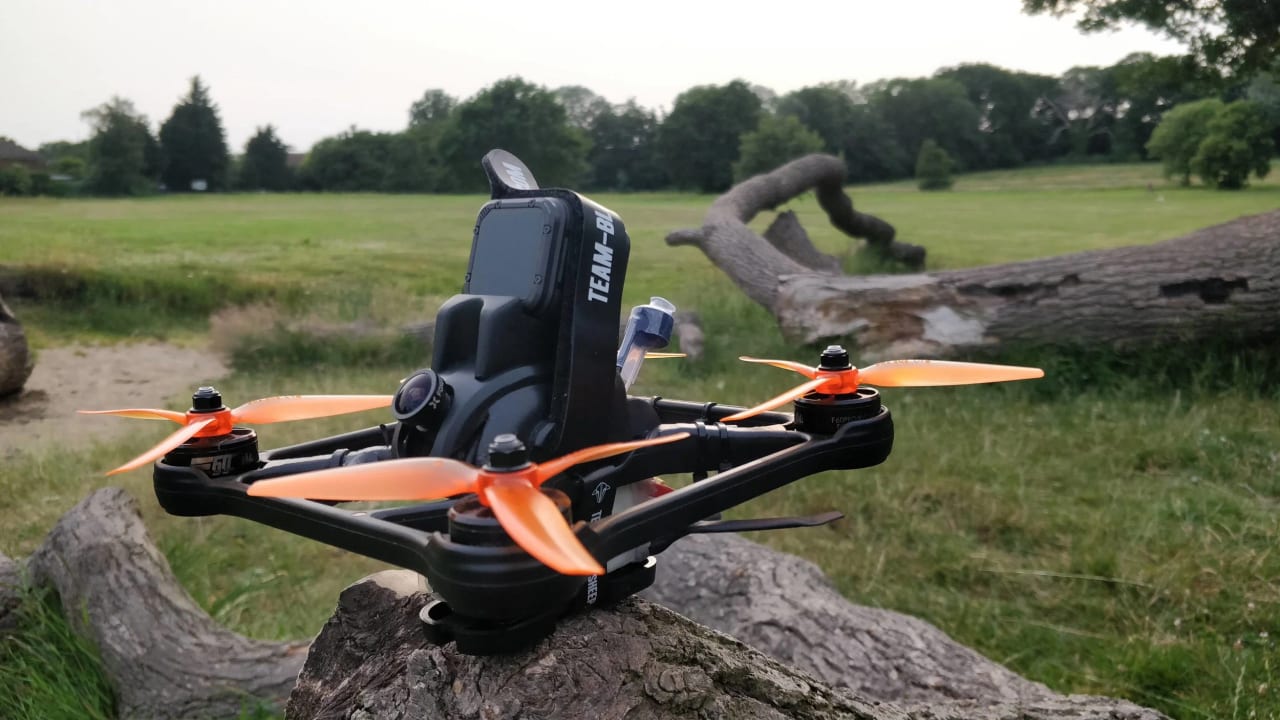

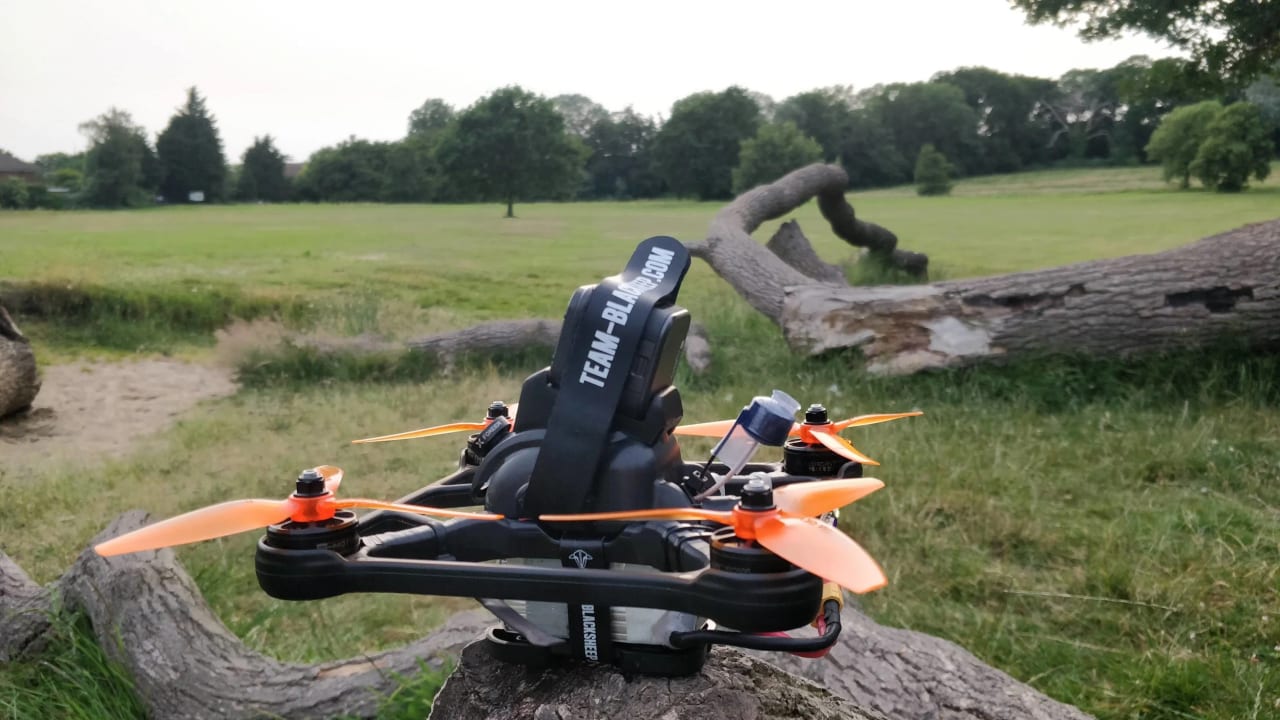

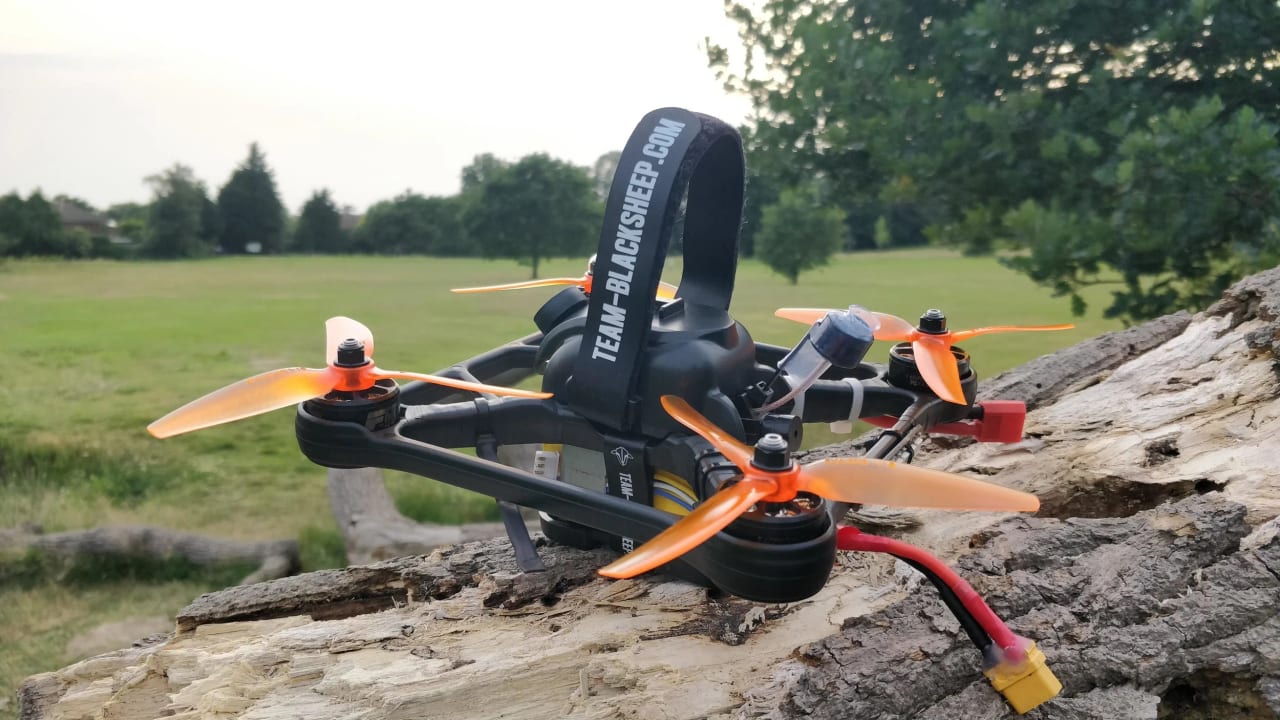

IMG_20180613_201526.jpg IMG_20180613_201536.jpg IMG_20180613_204126.jpg IMG_20180613_204140.jpg IMG_20180613_204147.jpg IMG_20180613_210935.jpg
